Linux 모델 (NEC 320Fd-LR, 320Fd-MR)






 320Fd-LR, 320Fd-MR (Linux 모델)
320Fd-LR, 320Fd-MR (리눅스 모델)
- Red Hat Enterprise Linux 5.2 지원
- HDD 최대 900MB
- 최대 메모리 LR 12GB, MR 24GB
- 인텔 Quad Core Xeon LR 2.0GHz / MR 3.0GHz

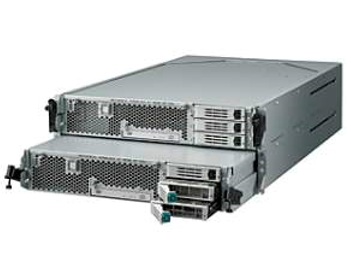

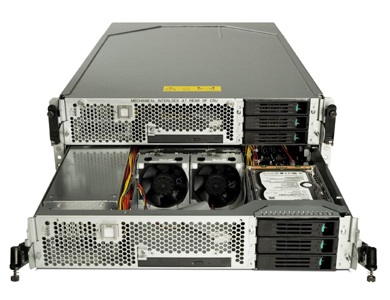

 제품 이미지 - NEC Fault Tolerant 서버 :
    320Fd-LR, 320Fd-MR (리눅스 모델)
 NEC FT 서버(무정지 서버) 제품 사양
NEC 320Fd-LR, 320Fd-MR 모델의 제품 사양
Windows model : 320Fd-LR (N8800-122F), 320Fd-MR (N8800-123F)
Linux model : 320Fd-LR (N8800-124F), 320Fd-MR (N8800-125F)
VMware model : 320Fd-LR (N8800-128F), 320Fd-MR (N8800-129F)
320Fd-MR
(N8800-123F,N8800-125F,N8800-129F)
320Fd-LR
(N8800-122F,N8800-124F,N8800-128F)
Chipset Intel 5000X Chipset + ESB2M + NEC FCPGA
Logical
Processor
Processor Intel® Xeon® E5450-3.00GHz Intel® Xeon® E5405-2.00GHz
FSB 1333MHz
Package LGA771
L2 cache 6MB x2
Logical
Memory
Type DDR2-667 FB-DIMM
Support DIMM 2x 1 GB, 2x 2 GB, 2x 4 GB
Sockets 6
Max 24 GB (6x 4 GB)
ECC Supported
Chipkill Supported
Logical
Hard drive
Type 3.5 inch SAS
Support drive SAS 15K: 73GB, 146GB, 300GB
Max SAS: 3x 300GB (RAID-1)
SPAN Optional
Logical
LAN
Channel 2x 1000BASE-T
Controller ESB2
Wake On LAN Supported
AFT Supported
PXE boot Supported
Video Controller ATI ES1000
VRAM 32 MB
Resolution 640x480 - 1280x1024
Peripherals Optical disk Slim CD-RW/DVD Combo
Floppy disk Optional (USB Floppy)
Logical
I/O Slot
PCI-X 1x 64 bit/133 MHz (MD2), 1x 64 bit/133 MHz (FH/FL)
PCI-e 1x 8 lane slot
Hot-plug -
External
Interface
LAN 4x RJ-45
USB2.0 3x Type A
Serial 2x D-Sub 9pin
Management Optional (2x RJ-45)
Device Bay 3.5 INCH H/S 6x 1 INCH height
5 INCH SLIM 2
Regulatory FCC, UL, CCC
Supported OS Windows® 2003 Server® R2 EE
Windows 2008 Server EE
Red Hat™ Linux™ 5.2 Advanced Platform (EM64T)
VMware® ESX 3.02ft (Special version for Fault Tolerant Servers)
