Linux 모델 (NEC 320Lb-R)




 320Lb-R (Linux 모델)
320Lb-R (Linux 모델)
- Linux for NEC Express5800/ft series 지원
- HDD 최대 164MB
- 최대 메모리 3GB
- Intel Xeon Processor 2.4GHz

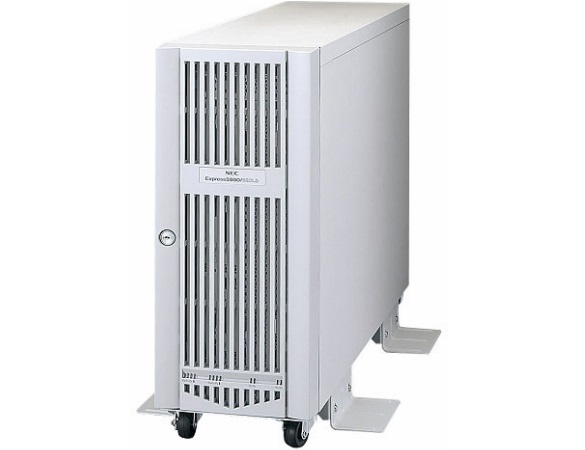

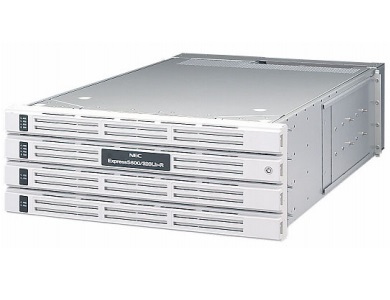

 제품 이미지 - NEC Fault Tolerant 서버 :
    320Lb-R (Linux 모델)
 NEC FT 서버(무정지 서버) 제품 사양
NEC 320Lb-R, 320Lc-R 모델의 제품 사양
Windows model : 320Lb (N8800-027F), 320Lb-R (N8800-028F),
         320Lc (N8800-063F), 320Lc-R (N8800-064F)
Linux model : 320Lb (N8800-057F), 320Lb-R (N8800-058F)
NEC Express5800/320Lb
(N8800-027F)
NEC Express5800/320Lb-R
(N8800-028F)
CPU Type Intel Xeon Processor x 1
Clock/second cache 2.4GHz/512KB
Number of processors 1
Chipset Server Works Server Set III GC-LE
Memory Standard 256MB (128MB × 2*)
*Each module has a DIMM in standard configuration.
Maximum 3GB (The standard DIMM must be replaced.)
Expansion unit 2 DIMMs (128MB ×2/ 256MB ×2/ 512 MB ×2)
Memory module DDR200 SDRAM DIMM (Registered Type)
Error check ECC
Graphics (VRAM) CT69000 (VRAM 2MB)
Auxiliary
input
device
Floppy disk (standard) 3.5-inch drive x 1 (USB)
Hard disk (standard) None
Hard disk (maximum) 329.0GB* (18.1GB × 2 + 73.2GB × 4)
* The user area is reduced to a half of the physical capacity due to software mirroring.
CD-ROM (standard) ATAPI interface × 1 (Load on tray type, x24 speed)
A ready drive is indicated by POWER LED of that PCI module.
File bay 5.25 inch None
3.5 inch 6 slots
Additional
slot
PCI 6 slots (2 slots are used for graphics board.)
LAN interface 1000BASE-T/100BASE-TX/10BASE-T (2 ports)
100BASE-TX/10BASE-T (2 ports)
External
interface
USB 4-pin (2 ports) 2 ports are used by keyboard and external USB FDD.
Serial D-sub 9-pin (2 ports)
Network RJ-45 (4 ports)
Display MINI D-sub 15-pin (1 port)
Cabinet design Deskside and mini-tower Rack-mount type
External dimensions 222 (width)*×560 (height)×795 (depth) mm
*370mm if stabilizers included
480 (width)×177 (height)×790 (depth) mm
Weight 68 kg (Max. 73kg) 56 kg (Max. 61kg)
Power supply 100 to 120 VAC +- 10%, 200 to 240 VAC +- 10%, 50/60 Hz +- 1 Hz
Power consumption 880 VA, 870 W
Environmental
requirements
Temperature 10 to 35°C
Humidity 20 to 80% RH (no condensation)
Supported OS Microsoft Windows 2000 Advanced Server
NEC Express5800/320Lb
(N8800-057F)
NEC Express5800/320Lb-R
(N8800-058F)
CPU Type Intel Xeon Processor x 1
Clock/second cache 2.4GHz/512KB
Number of processors 1
Chipset Server Works Server Set III GC-LE
Memory Standard 512MB (256MB × 2*)
*Each module has a DIMM in standard configuration.
Maximum 3GB (The standard DIMM must be replaced.)
Expansion unit 2 DIMMs (256MB ×2/ 512 MB ×2)
Memory module DDR200 SDRAM DIMM (Registered Type)
Error check ECC
Graphics (VRAM) CT69000 (VRAM 2MB)
Auxiliary
input
device
Floppy disk (standard) 3.5-inch drive x 1 (USB)
Hard disk (standard) None
Hard disk (maximum) 329.0GB* (18.1GB × 2 + 73.2GB × 4)
* The user area is reduced to a half of the physical capacity due to software mirroring.
CD-ROM (standard) ATAPI interface × 2 (Load on tray type, x24 speed)
File bay 5.25 inch None
3.5 inch 6 slots
Additional
slot
PCI 6 slots (2 slots are used for graphics board.)
LAN interface 1000BASE-T/100BASE-TX/10BASE-T (2 ports)
100BASE-TX/10BASE-T (2 ports)
External
interface
USB 4-pin (2 ports) 2 ports are used by keyboard and external USB FDD.
SCSI VHDCI 68-pin connector (2 ports)
Serial D-sub 9-pin (2 ports) *For maintenance purpose only
Network RJ-45 (4 ports)
Display MINI D-sub 15-pin (1 port)
Cabinet design Deskside and mini-tower Rack-mount type
External dimensions 222 (width)*×560 (height)×795 (depth) mm
*370mm if stabilizers included
480 (width)×177 (height)×790 (depth) mm
Weight 68 kg (Max. 73kg) 56 kg (Max. 61kg)
Power supply 100 to 120 VAC +- 10%, 200 to 240 VAC +- 10%, 50/60 Hz +- 1 Hz
Power consumption 880 VA, 870 W
Environmental
requirements
In operation Temperature 10 to 35°C
Humidity 20 to 80% RH (non-condensing)
In storage Temperature -10 to 55°C
Humidity 20 to 80% RH (non-condensing)
Supported OS Linux for NEC Express5800/ft series
NEC Express5800/320Lc
(N8800-063F)
NEC Express5800/320Lc-R
(N8800-064F)
CPU Type Intel Xeon Processor x 1
Clock/second cache 2.8GHz/512KB
Number of processors 1 processor (the number of processors installed per module)
Maximum Up to 2 processors (the number of processors installed per module)
Chipset Server Works Server Set III GC-LE
Memory Standard 256MB (512MB × 2*)
*Each module has two DIMMs in standard configuration.
Maximum 6GB (The standard DIMM must be replaced.)
Expansion unit 2 DIMMs (256MB ×2/ 512 MB ×2/ 1 GB ×2)
Memory module DDR200 SDRAM DIMM (Registered Type)
Error check ECC
Graphics (VRAM) CT69000 (VRAM 2MB)
Auxiliary
input
device
Floppy disk (standard) 3.5-inch drive x 1 (USB)
Hard disk (standard) None
Hard disk (maximum) 1800GB* (300GB × 6)
* The user area is reduced to a half of the physical capacity due to software mirroring.
CD-ROM (standard) ATAPI interface × 1 (Load on tray type, x24 speed)
A ready drive is indicated by POWER LED of that PCI module.
File bay 5.25 inch None
3.5 inch 6 slots
Additional
slot
PCI 6 slots (2 slots are used for graphics board.)
LAN interface 1000BASE-T/100BASE-TX/10BASE-T (2 ports)
100BASE-TX/10BASE-T (2 ports)
External
interface
USB 4-pin (2 ports) 2 ports are used by keyboard and external USB FDD.
SCSI VHDCI 68-pin connector (2 ports)
Serial D-sub 9-pin (2 ports) *For maintenance purpose only
Network RJ-45 (4 ports)
Display MINI D-sub 15-pin (1 port)
Cabinet design Deskside and mini-tower Rack-mount type
External dimensions 222 (width)*×560 (height)×795 (depth) mm
*370mm if stabilizers included
480 (width)×177 (height)×790 (depth) mm
Weight 68 kg (Max. 73kg) 56 kg (Max. 61kg)
Power supply 100 to 120 VAC +- 10%, 200 to 240 VAC +- 10%, 50/60 Hz +- 1 Hz
Power consumption 880 VA, 870 W
Environmental
requirements
In operation Temperature 10 to 35°C
Humidity 20 to 80% RH (non-condensing)
In storage Temperature -10 to 55°C
Humidity 20 to 80% RH (non-condensing)
Supported OS Microsoft Windows Server 2003
