VMware ¸ðµ¨ (NEC R320c-E4, R320c-M4)

¡¡ ¡¡ ¡¡ ¡¡

¡¡ ¡¡ ¡¡ ¡¡

¡¡ ¡¡ ¡¡ ¡¡
 R320c-E4, R320c-M4 (VMware ¸ðµ¨)
R320c-E4, R320c-M4 (VMware ¸ðµ¨)
ÇöÀç NEC FT ¼­¹öÀÇ ÃֽŠVMware ¸ðµ¨Àº R320f-E4, R320f-M4 ÀÔ´Ï´Ù.
- VMware¢ç vSphere¢â 5.1 Áö¿ø
- SAS ÃÖ´ë 9.6TB
- ÃÖ´ë 256GB ¸Þ¸ð¸®
- ÀÎÅÚ¢ç Xeon¢ç ÇÁ·Î¼¼¼­

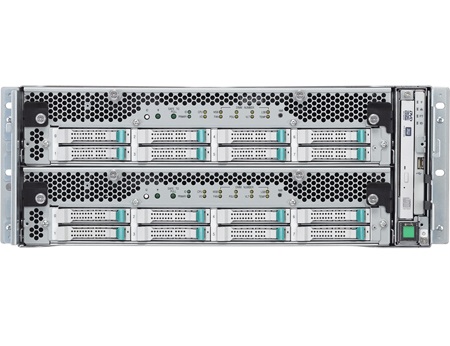

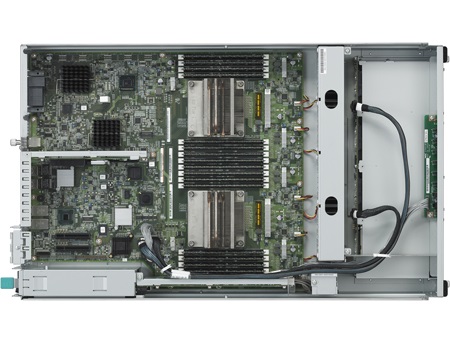

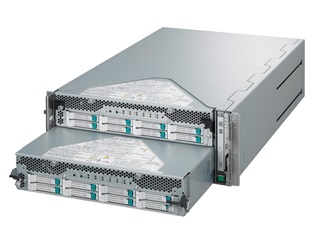

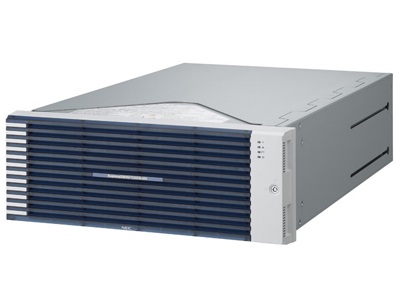

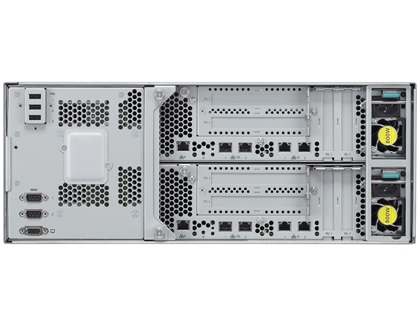

 Á¦Ç° À̹ÌÁö - NEC Fault Tolerant ¼­¹ö :
    R320c-E4, R320c-M4 (VMware ¸ðµ¨)
 NEC FT ¼­¹ö(¹«Á¤Áö ¼­¹ö) Á¦Ç° »ç¾ç
NEC R320c-E4, R320c-M4 ¸ðµ¨ÀÇ Á¦Ç° »ç¾ç
Windows model : R320c-E4 (N8800-173F), R320c-M4 (N8800-174F)
VMware model : R320c-E4 (NP8800-173FP1), R320c-M4 (NP8800-174FP1)
Linux model : R320c-E4 (N8800-173F), R320c-M4 (N8800-174F)
R320c-E4 (N8800-173F) R320c-M4 (N8800-174F)
Form factor / height 4U rack
Number of logical¡¡processors 1 to 2
Processors Intel¢ç Xeon¢ç Processor E5-2603
(1.80 GHz/4-core/10 MB)
Intel¢ç Xeon¢ç Processor E5-2670
(2.60 GHz/8-core/20 MB)
Chipset Intel¢ç C602 Chipset with GeminiEngine¢â
Memory type DDR3L-1600 Registered DIMM with ECC, x4 SDDC
Memory Clock 1066 MHz 1333 MHz
Logical Memory slots 16
Maximum logical memory 256 GB
Storage type Hot plug 2.5-inch SAS HDD
Hot plug 2.5-inch SAS SSD
Logical hard drive bays 8
Maximum logical internal storage 9.6 TB
Optical drive DVD-RAM drive
Logical expansion slots 2 Low-profile PCIe x4 Gen 2 2 Low-profile PCIe x4 Gen 2
2 Full-height PCIe x8 Gen 2
Video (VRAM) Integrated in the server management controller (32 MB)
Logical network interface 2 1000BASE-T
1 100BASE-TX for management
2 10GBASE-T
2 1000BASE-T
1 100BASE-TX for management
Maximum power consumption 1300 VA / 1290 Watt
Power supply 800 Watt (1 per module, 80 PLUS¢ç Platinum certified)
Systems management EXPRESSSCOPE Engine 3
External Interface 1 VGA, 4 USB 2.0, 4 LAN (2 per module),
2 management LAN (1 per module)
1 VGA, 4 USB 2.0, 8 LAN (4 per module),
2 management LAN (1 per module)
Dimensions (W x D x H) and
maximum weight
483 x 736 x 178 mm / 19.0 x 29.0 x 7.0 in 51 Kg / 112.44 lbs.
Temperature and humidity conditions
(non-condensing)
Operating: 10 to 35 ¡ÆC/ 50 to 95 ¡ÆF , 20 to 80%
Non-operating: -10 to 55¡ÆC/14 to 131¡ÆF, 20 to 80%
Software for availability Active Upgrade¢â(*1), Rapid Disk Resync (RDR)(*2)
(*1) For Microsoft¢ç Windows Server¢ç 2008 R2 Enterprise SP1 only
(*2) Supported on Windows operating systems only
Operating systems and virtualization
software
Microsoft¢ç Windows Server¢ç 2008 R2 Enterprise SP1
Microsoft¢ç Windows Server¢ç 2012 Standard
Microsoft¢ç Windows Server¢ç 2012 Datacenter
VMware¢ç vSphere¢â 5.1
VMware¢ç vSphere¢â 5.1 Update 1
Red Hat¢ç Enterprise Linux¢ç 6.5 Server (x86_64)
