VMware ¸ðµ¨ (NEC R320e-E4, R320e-M4)

¡¡ ¡¡ ¡¡ ¡¡

¡¡ ¡¡ ¡¡ ¡¡

¡¡ ¡¡ ¡¡ ¡¡
 R320e-E4, R320e-M4 (VMware ¸ðµ¨)
R320e-E4, R320e-M4 (VMware ¸ðµ¨)
ÇöÀç NEC FT ¼­¹öÀÇ ÃֽŠVMware ¸ðµ¨Àº R320f-E4, R320f-M4 ÀÔ´Ï´Ù.
- VMware¢ç ESXi 6.0 Update 1b Áö¿ø
- SAS ÃÖ´ë 9.6TB
- ÃÖ´ë 512GB ¸Þ¸ð¸®
- ÀÎÅÚ¢ç Xeon¢ç ÇÁ·Î¼¼¼­

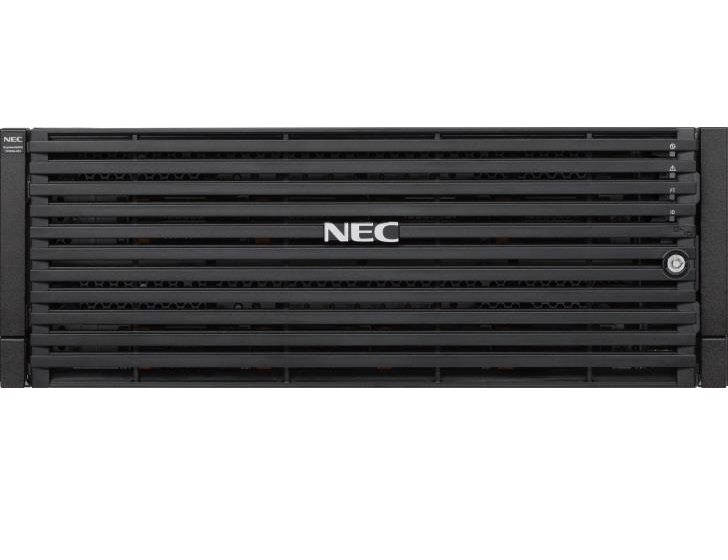

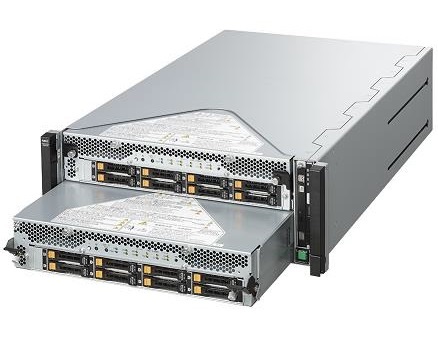

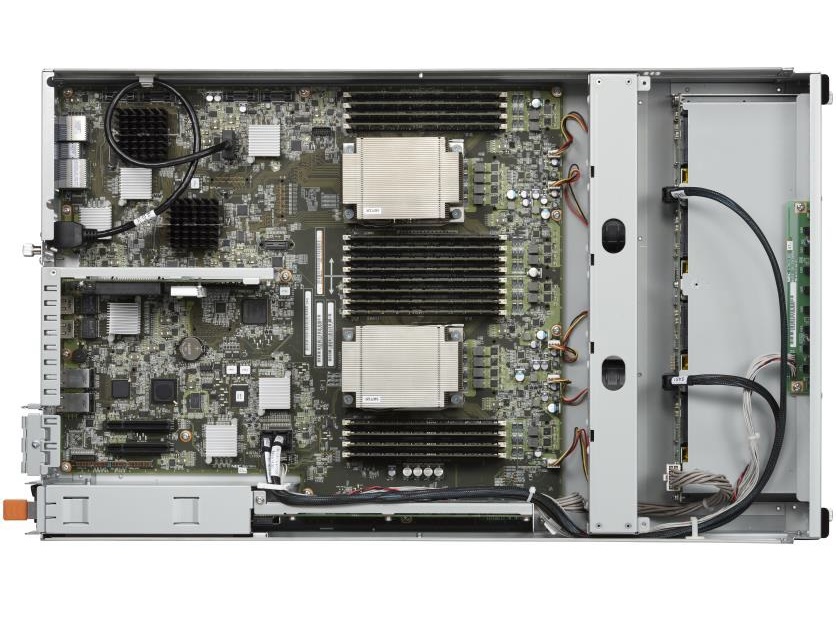

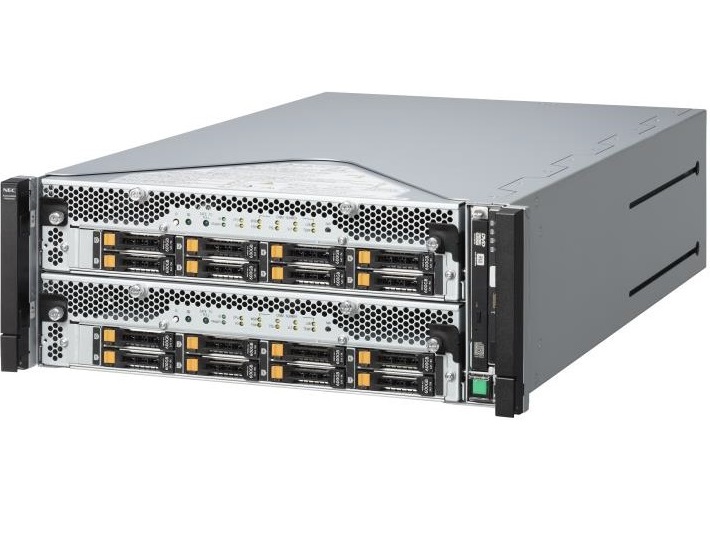

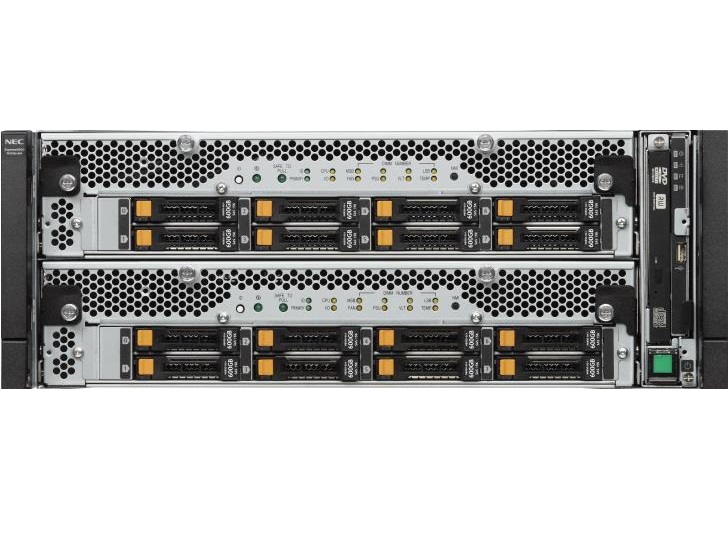

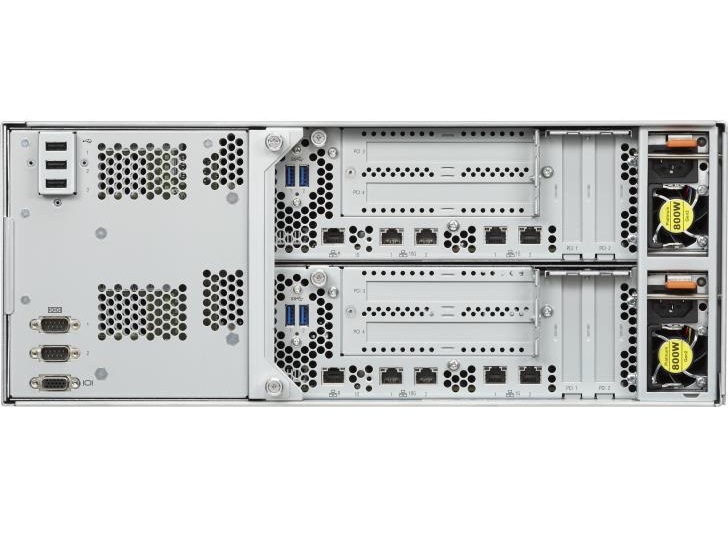

 Á¦Ç° À̹ÌÁö - NEC Fault Tolerant ¼­¹ö :
    R320e-E4, R320e-M4 (VMware ¸ðµ¨)
 NEC FT ¼­¹ö(¹«Á¤Áö ¼­¹ö) Á¦Ç° »ç¾ç
NEC R320e-E4, R320e-M4 ¸ðµ¨ÀÇ Á¦Ç° »ç¾ç
Windows Model : R320e-E4 (N8800-201F), R320e-M4 (N8800-202F)
VMware Model : R320e-E4 (N8800-201F, NP8800-201FP1),
¡¡¡¡¡¡¡¡¡¡¡¡¡¡R320e-M4 (N8800-202F, NP8800-202FP1)
Linux Model : R320e-E4 (N8800-201F, NP8800-201FP2),
¡¡¡¡¡¡¡¡¡¡¡¡¡¡R320e-M4 (N8800-202F, NP8800-202FP2)
R320e-E4 (N8800-201F) R320e-M4 (N8800-202F)
Form factor / height 4U rack
Number of logical¡¡processors 1 to 2
Processors Intel¢ç Xeon¢ç Processor E5-2630 v3
(2.40 GHz/8-core/20 MB)
Intel¢ç Xeon¢ç Processor E5-2670 v3
(2.30 GHz/12-core/30 MB)
Chipset Intel¢ç C612 Chipset with GeminiEngine¢â
Memory type DDR4-2133 ECC RDIMM
DDR4-2133 ECC LRDIMM
Memory Clock 1866 MHz
Logical Memory slots 16
Maximum logical memory 512 GB
Storage type Hot plug 2.5-inch SAS HDD
Hot plug 2.5-inch SAS SSD
Logical hard drive bays 8
Maximum logical internal storage 9.6 TB
Optical drive DVD-RAM drive
Logical expansion slots 2 Low-profile PCIe x4 Gen 3 2 Low-profile PCIe x4 Gen 3
2 Full-height PCIe x8 Gen 3
Video (VRAM) Integrated in the server management controller (32 MB)
Logical network interface 2 1000BASE-T
1 100BASE-TX for management
2 10GBASE-T
2 1000BASE-T
1 100BASE-TX for management
Maximum power consumption 1430 VA / 1420 Watt
Power supply 800 Watt (1 per module, 80 PLUS¢ç Platinum certified)
Systems management EXPRESSSCOPE Engine 3
External Interface 1 VGA, 4 USB 2.0, 4 LAN (2 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module)
1 VGA, 4 USB 2.0, 8 LAN (4 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module)
*The USB 3.0 connectors are not available for VMware ESXi.
Dimensions (W x D x H) and
maximum weight
483 x 734 x 176 mm / 19.0 x 28.9 x 6.9 in 51 Kg / 112.44 lbs.
Temperature and humidity conditions
(non-condensing)
Operating: 10 to 40 ¡ÆC/ 50 to 104 ¡ÆF , 20 to 80%
Non-operating: -10 to 55¡ÆC/14 to 131¡ÆF, 20 to 80%
Software for availability Rapid Disk Resync (RDR)
(Supported on Windows operating systems only.)
Operating systems and virtualization
software
Microsoft¢ç Windows Server¢ç 2008 R2 Enterprise SP1
Microsoft¢ç Windows Server¢ç 2012 R2 Standard
Microsoft¢ç Windows Server¢ç 2012 R2 Datacenter
Red Hat¢ç Enterprise Linux¢ç 7.2(Virtualization (KVM/LXC) is not supported.)
VMware¢ç ESXi 6.0 Update 1b
