삼성 키오스크 CY-KM24AP

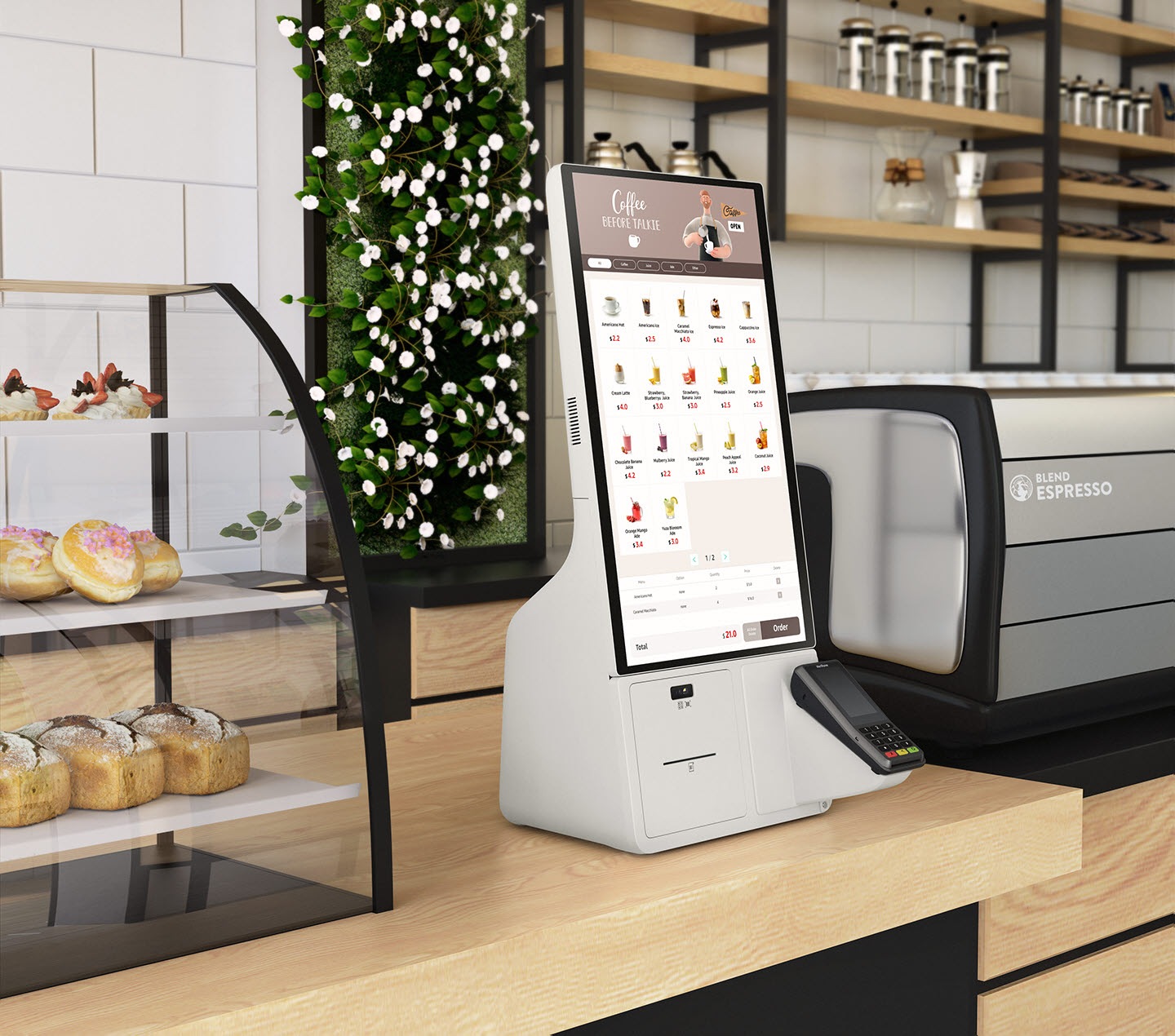

 Designed for every business, delivering peace of mind
Samsung’s latest technology delivers a new standard of kiosk, offering a compact, space-saving design, advanced security provided by Knox, and easy management and maintenance for reliable performance.
Built based on Samsung’s SoC(System on Chip) technology, it is the ideal solution for any business.
삼성 키오스크 - CY-KM24AP - Designed for every business, delivering peace of mind

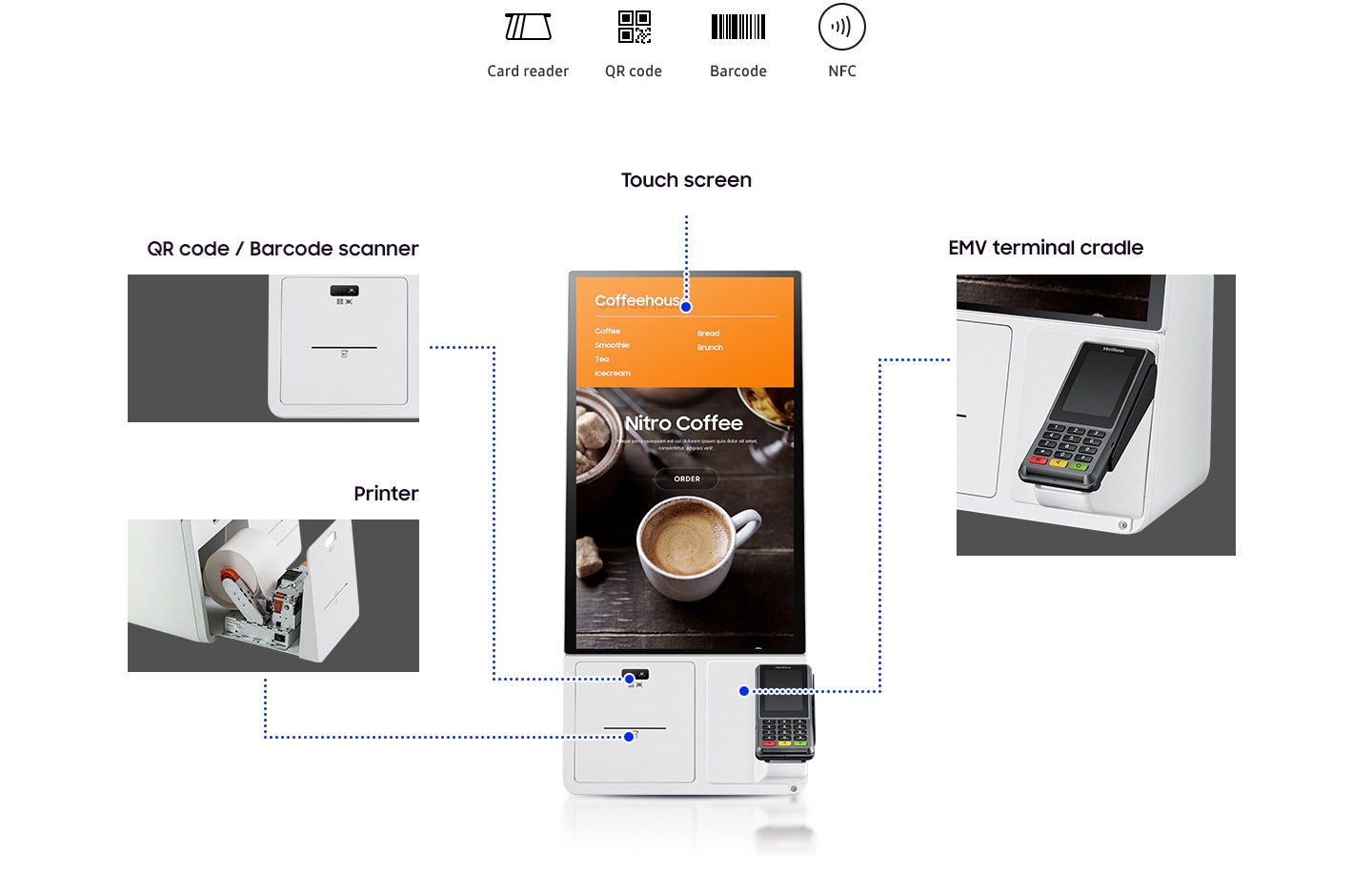

 Modular functionality to support any payment type
The Samsung Kiosk adopts a modular design which provides a variety of payment options including credit card, barcode, QR code and NFC, along with a built-in printer.
This means it needs no additional peripherals for an advanced, all-in-one solution that also makes maintenance fast and easy.
삼성 키오스크 - CY-KM24AP - Modular functionality to support any payment type
*Samsung Kiosk supports a fully integrated EMV cradle for a Verifone terminal (P400) which varies by region and country.*EMV terminal must be purchased separately.

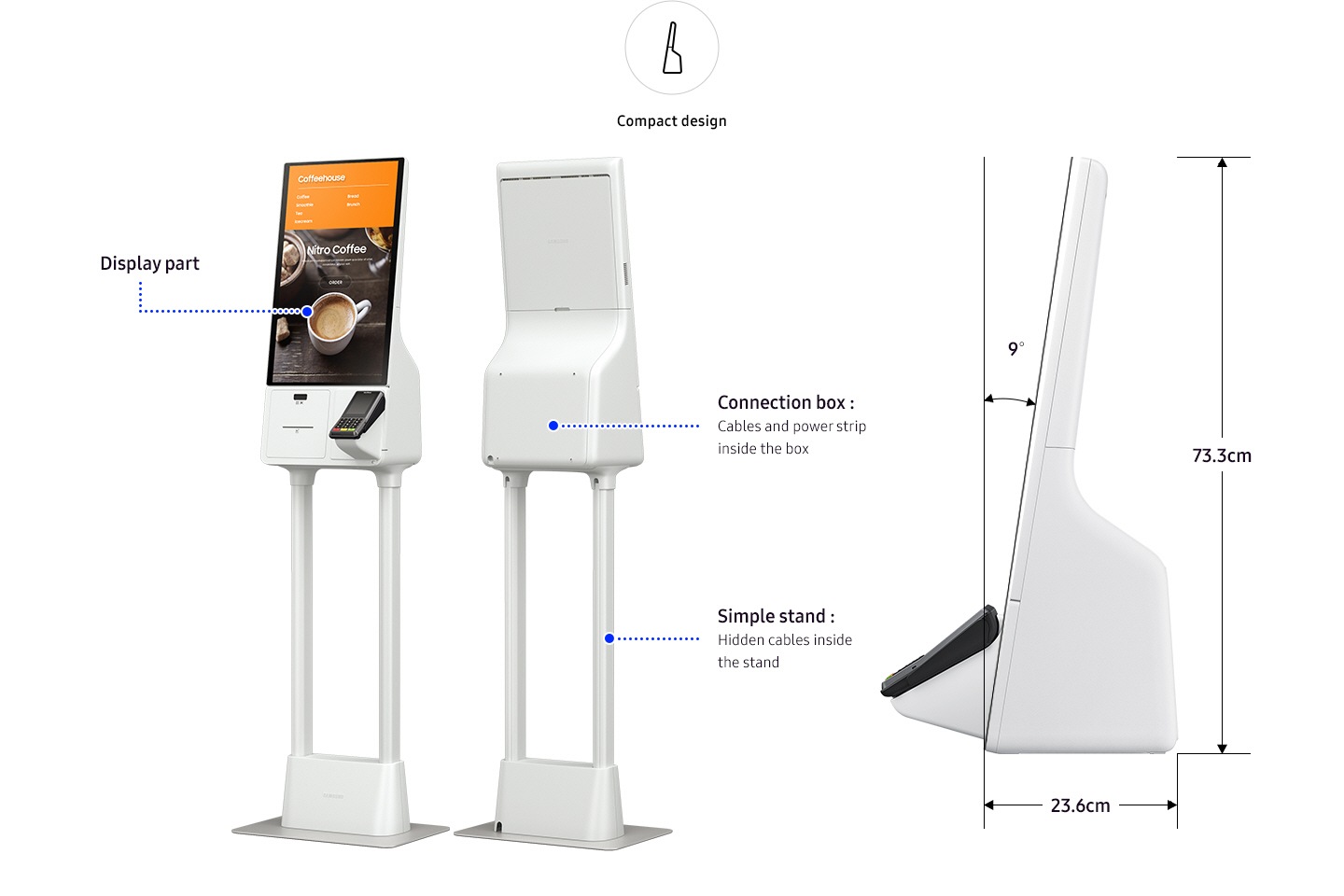

 Compact and modern design
Samsung Kiosk is composed of a single display part and connection box, along with an optional stand.
The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.
삼성 키오스크 - CY-KM24AP - Compact and modern design

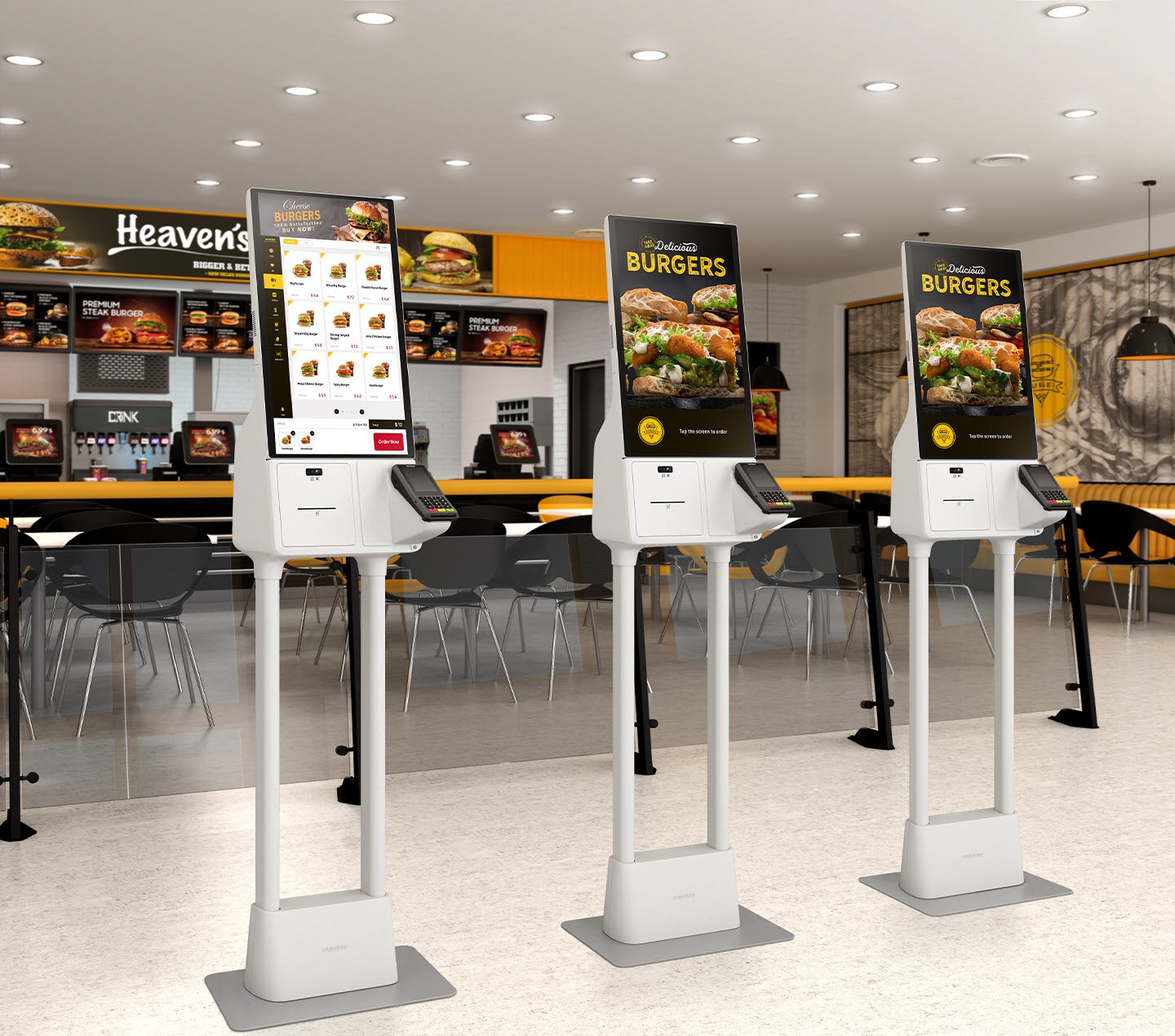

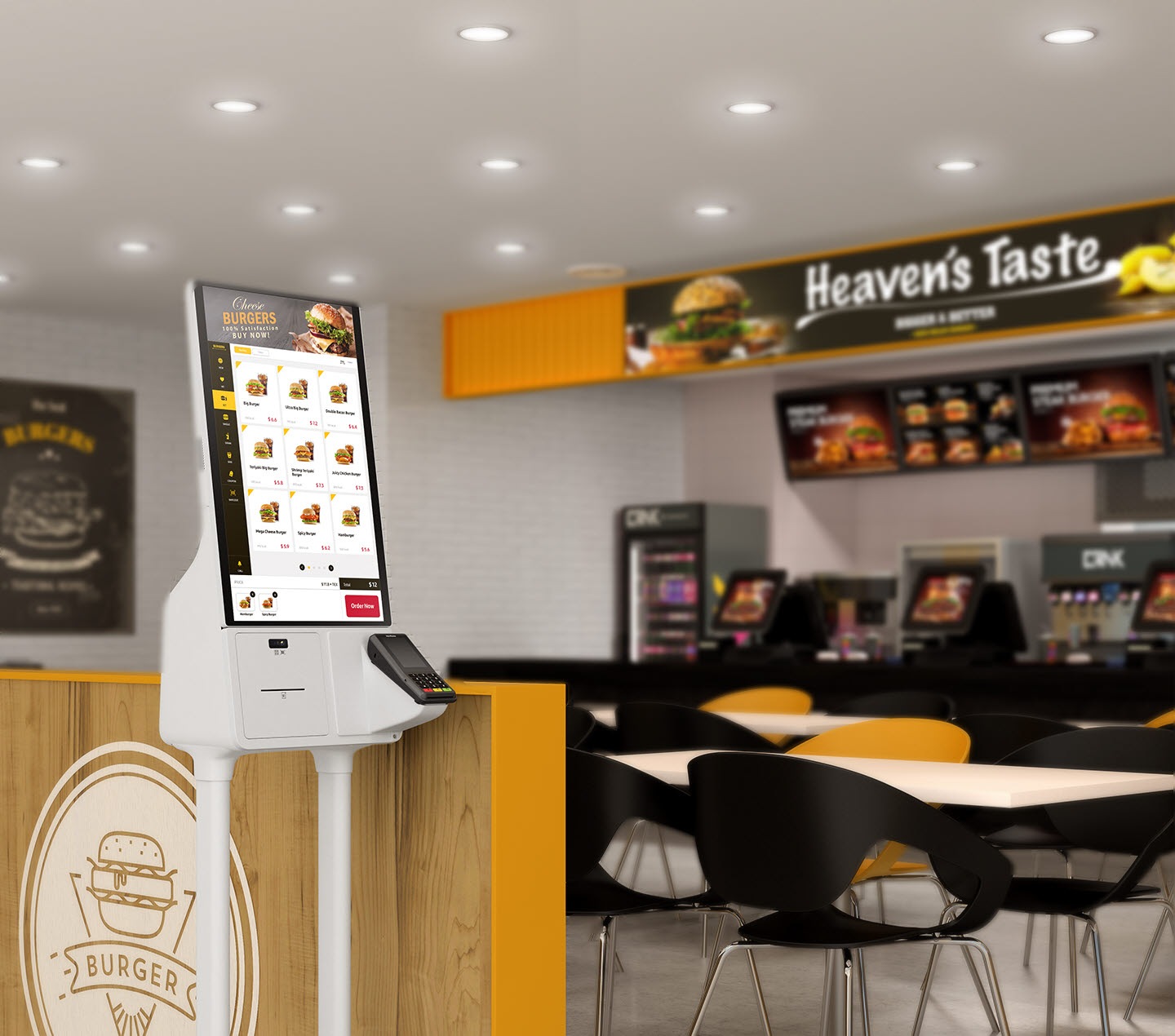

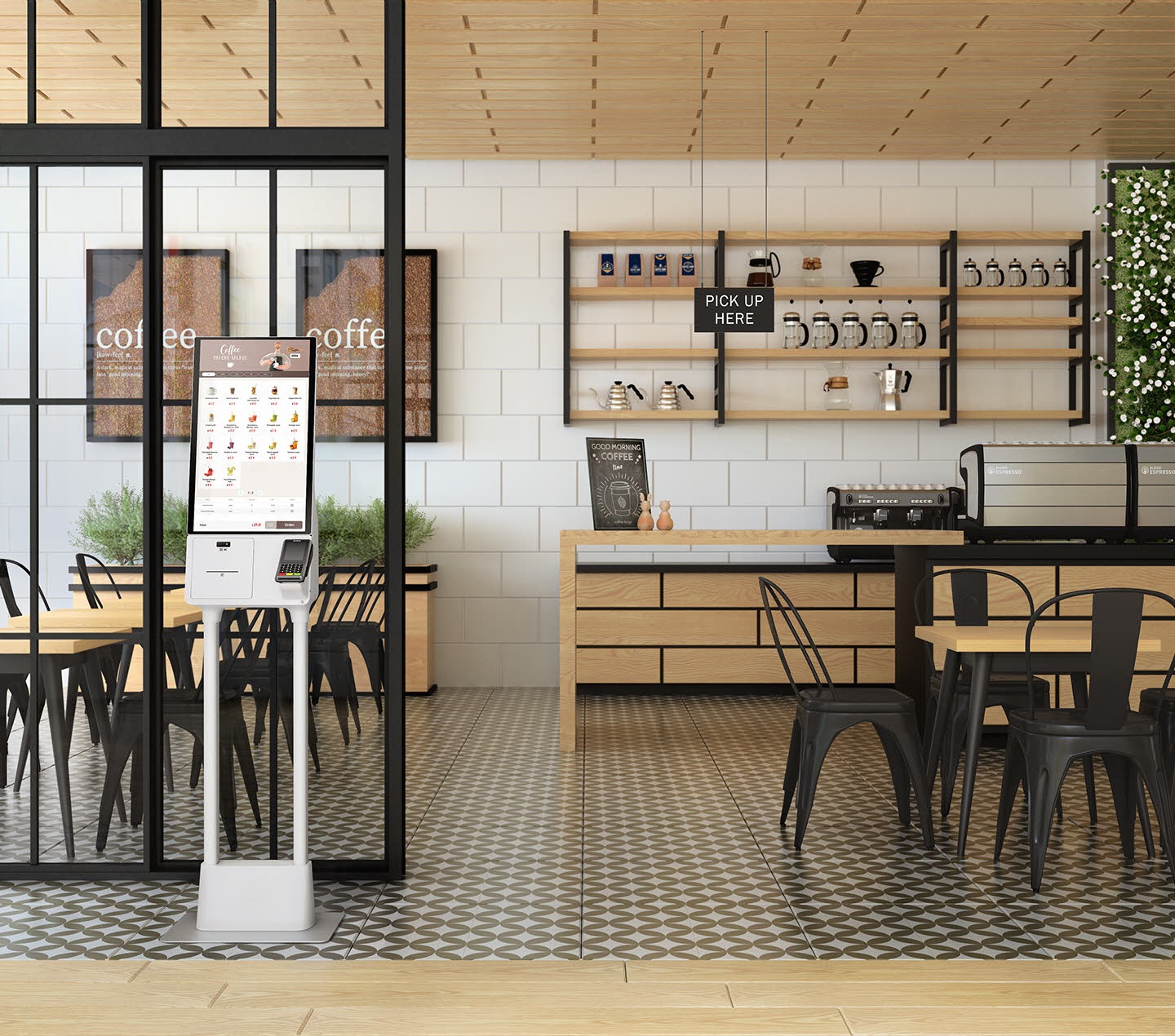

 Versatile solution for any scenario
For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types - countertop, floor stand and wall-mounting - along with hidden cabling and power strip, with no external PC needed either for optimized space saving.
삼성 키오스크 - CY-KM24AP - Versatile solution for any scenario
* Wall mount must be purchased separately

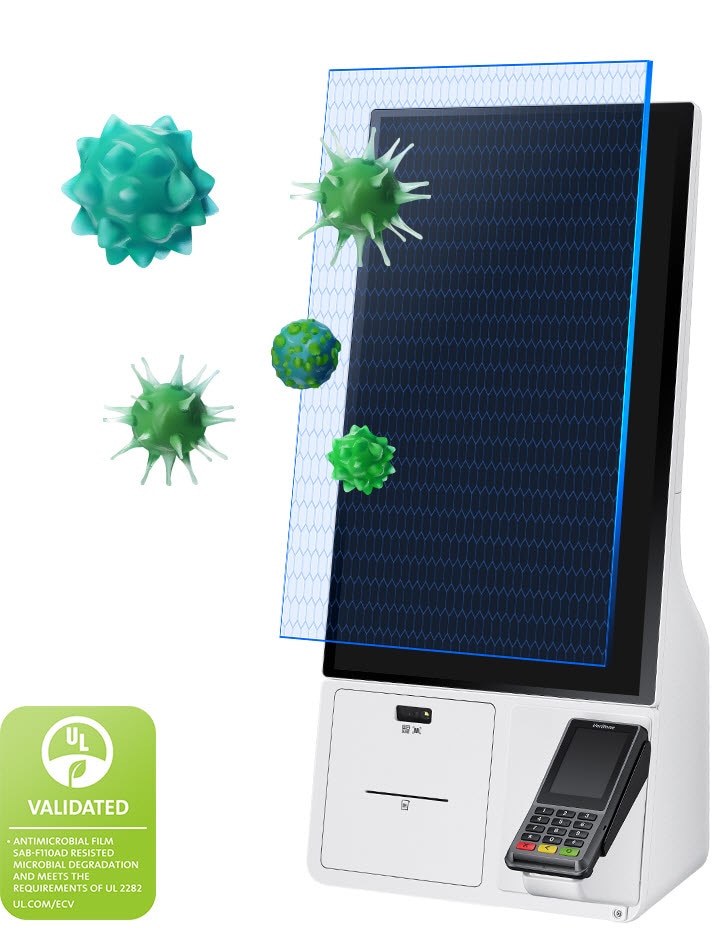

 Keep the screen clean
Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria.
This enables customers to stay focused on what’s on the screen with peace of mind.
삼성 키오스크 - CY-KM24AP - Keep the screen clean
* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione. * Antibacterial property does not completely protect users against bacteria and provides no protection against viruses including Covid-19. * Antimicrobial Coating is on surface of screen only and the effect may vary depending on conditions of use. * Antibacterial certification: UL2282 which is granted when the antibacterial effectiveness is more than 99%. (Test method(JIS Z 2801): after inoculation of 0.4cc of liquid with bacteria(Escherichia coli and Staphylococcus aureus) on specimen(5cm x 5cm), a sterilized film(4cm x 4cm) is adhered and left in a thermo-hygrostat with a relative humidity of 90% or more at 35°C for 24 hours, and then the efficiency of killing of the bacteria is measured / Test agency: FITI Test Research Institute)

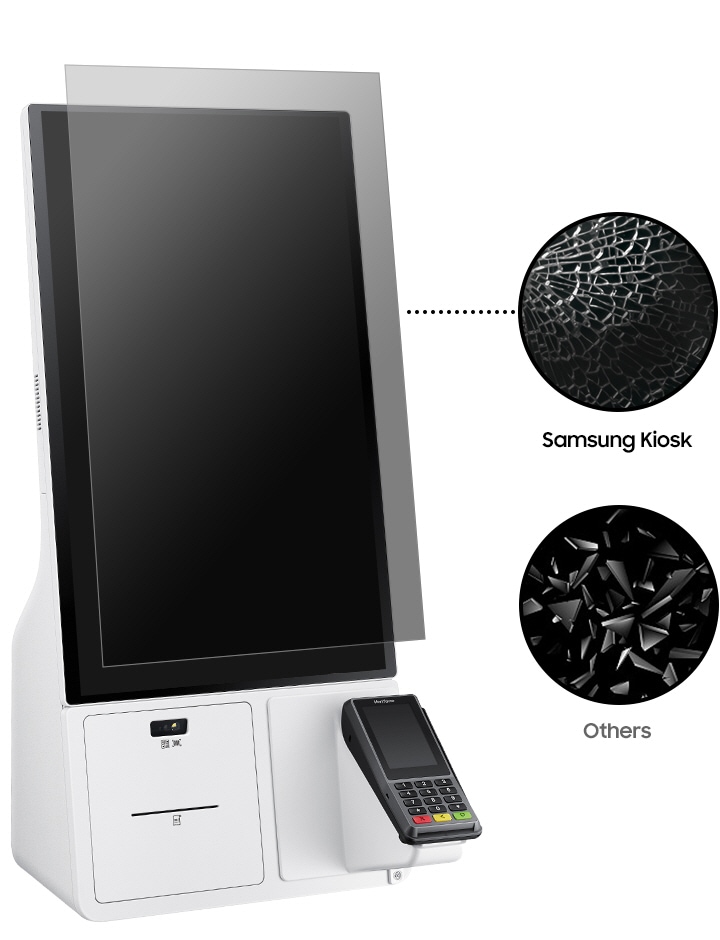

 Minimize accidents and risks
Shatterproof protection
Samsung understands that accidents happen.
To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
삼성 키오스크 - CY-KM24AP - Minimize accidents and risks

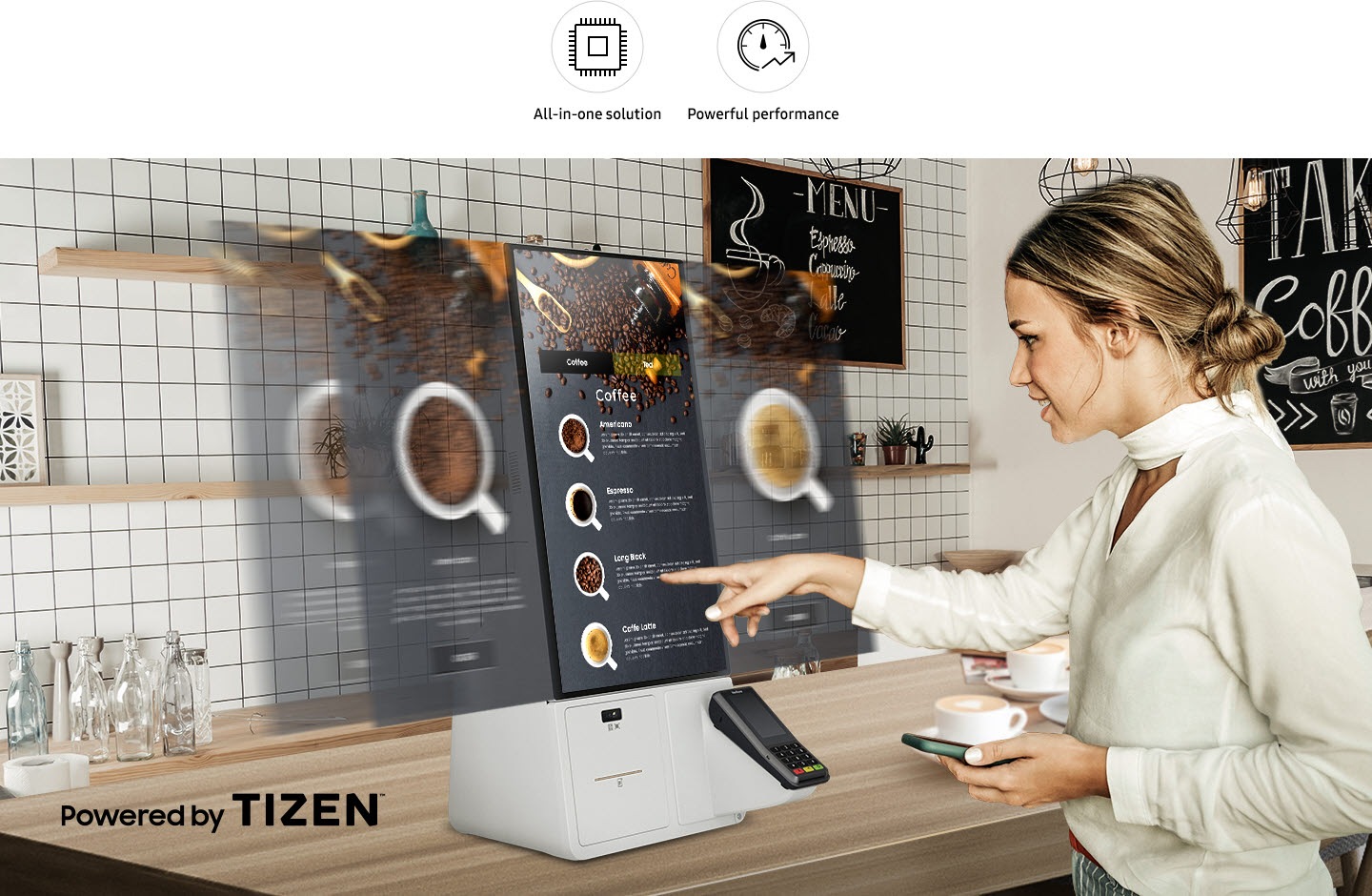

 Powerful solution with no PC needed
Samsung Kiosk is built based on Samsung’s proven SoC(System on Chip) technology.
This enables the kiosk to function without the need for an external PC, further highlighting Samsung’s leadership in the PC-less solution space, while delivering powerful and reliable technology.
삼성 키오스크 - CY-KM24AP - Powerful solution with no PC needed

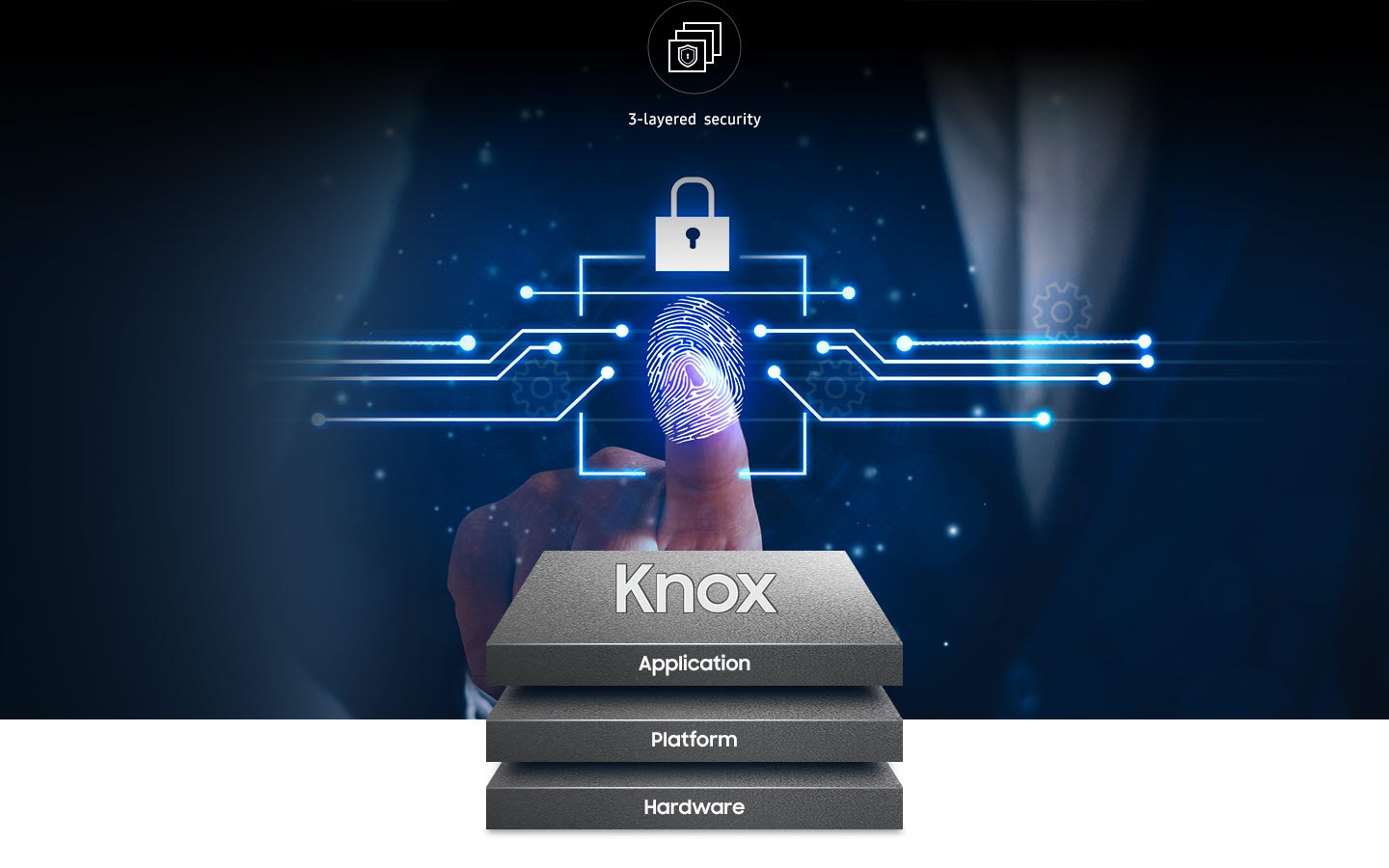

 Powerful, protective security
The kiosk uses three-layer security protection powered by Samsung Knox technology which supports application development on the secured platform, the protection of important customer data and effective minimization of security attacks for a powerful, comprehensive security solution.
삼성 키오스크 - CY-KM24AP - Powerful, protective security
 Display monitoring and management
Samsung Kiosk provides a proven remote monitoring solution, allowing managers to view display information, check peripheral devices and resolve errors.
Remote control capabilities also enable the diagnosis of issues and remote control of essential functions such as switching the screen on and off.
삼성 키오스크 - CY-KM24AP - Display monitoring and management
* MagicINFO license must be purchased separately for use of management solution.
* Please refer to www.samsung.com/business or www.samsung.com/displaysolutions for system requirement of MagicINFO.
삼성 키오스크 - CY-KM24AP - xxxxxx
삼성 키오스크 - CY-KM24AP - xxxxxx
삼성 키오스크 - CY-KM24AP - xxxxxx
 삼성 키오스크 KM24C-C : 전체 제품 사양
※ 해상도 1,920 x 1,080 / 250 cd/㎡ / 명암비 1,000:1
- LH24KMCCBGCXKR (KM24C-C) : 60.4cm (24인치)
삼성 키오스크
KMC 시리즈		 LH24KMCCBGCXKR (KM24C-C)
해상도 1,920 x 1,080 / 250 cd/㎡ / 명암비 1,000:1
디스플레이대각선 사이즈 (cm)60.4 cm
패널 타입ADS
해상도1,920 x 1,080
픽셀 피치0.2745 x 0.2745 mm
명암비1000:1 (without glass)
시야각(수평/수직)178/178
응답속도 (ms)14
밝기 (Typ)250 (Typ, w/o glass) nit
색재현성(Color Gamut)72%
헤이즈(Haze)25 (w/o glass) %
수평 주파수56~84.5 kHz
최대 픽셀 주파수148.5 MHz
제품 사용 시간16/7
수직 주파수48~75 Hz
동적 명암비Mega
SoC운영체제 버전Windows 10 IoT Enterprise
플래시메모리 사이즈256 GB
연결성USB1
전원소비전력 (On Mode)88 W
소비전력 (Sleep Mode)0.5 W
크기제품(가로x높이x깊이)547.9 x 334.4 x 48.8 mm
포장(가로x높이x깊이)620 x 419 x 122 mm
무게제품 무게4.3 kg
무게 (박스 포장)5.7 kg
기구사양베젤 두께UD: 17.9 / LR: 9.4
프레임 재질Non-Glossy
동작조건온도0 ~ 40 ℃
습도10 ~ 80 (non-condensing) %
인증정보안전 규격(*1)
EMC(*2)
TouchTouch TechnologyCapative
추가 기능터치있음
스탠드있음
(*1) CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
(*2) Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
 삼성 키오스크 매뉴얼 다운로드 - 키오스크 KMC 시리즈
　- KM24C-C : LH24KMCCBGCXKR 60.4cm (24인치)
　사용자 매뉴얼 [ver.2305250 한국어 4.59MB 2023-05-26]
(BN81-24436B-00_WEB_KMC-W_KR_KOR_230525.0.pdf)
　Quick Setup Guide [ver.2304280 한국어 3.48MB 2023-05-21]
(BN68-16449H-00_QSG_KMC-W_KR_KOR_230428.0.pdf)
