삼성 더월(The Wall) 올인원(All-In-One) IAB 시리즈

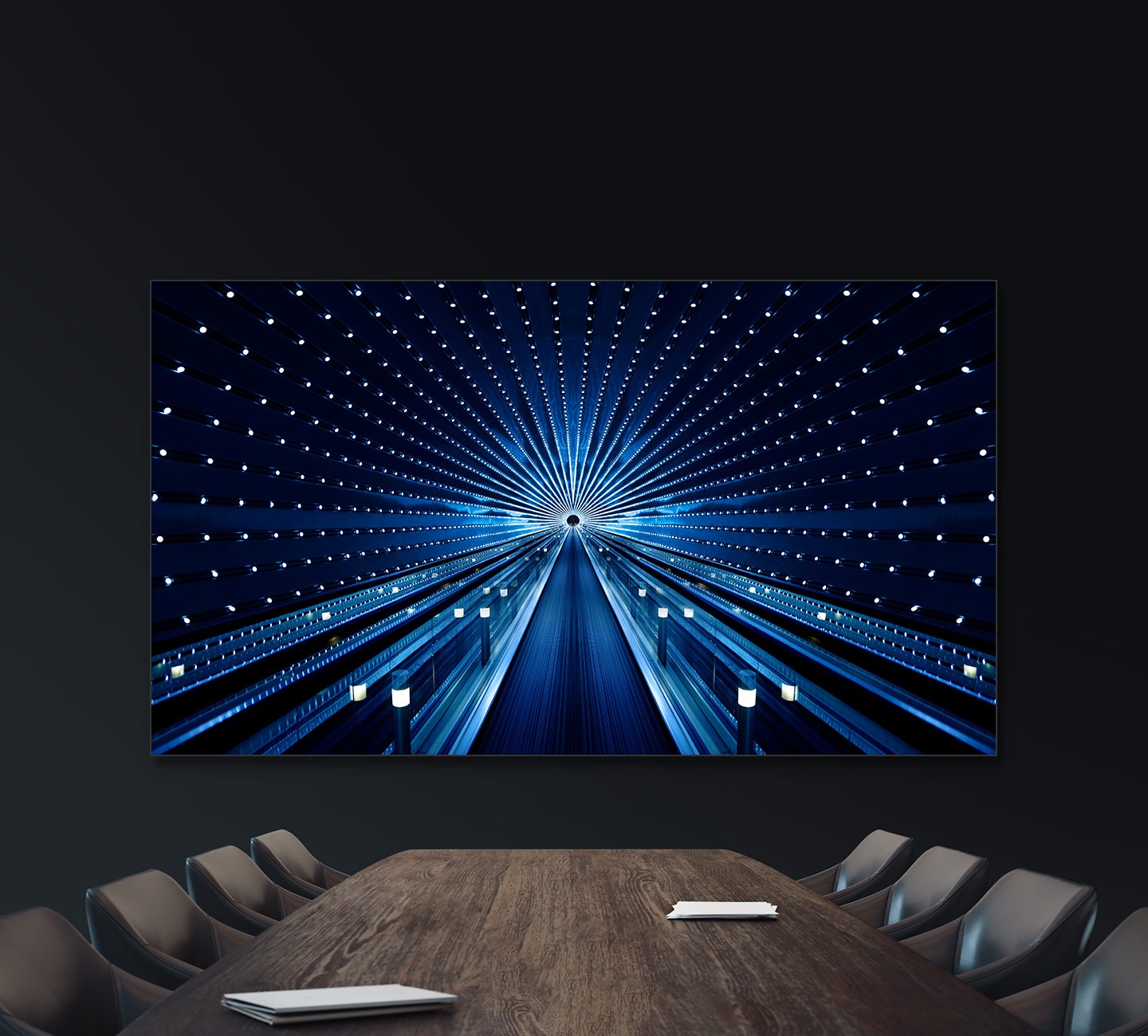

 Adopt a new paradigm for your business
The Wall is the epitome of innovation.
It constantly delivers new avenues to create unparalleled visual statements.
Redefining the LED paradigm once again, The Wall now solves the biggest challenge of industry, drastically improving installation.
The Wall, let it transform your business.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Adopt a new paradigm for your business

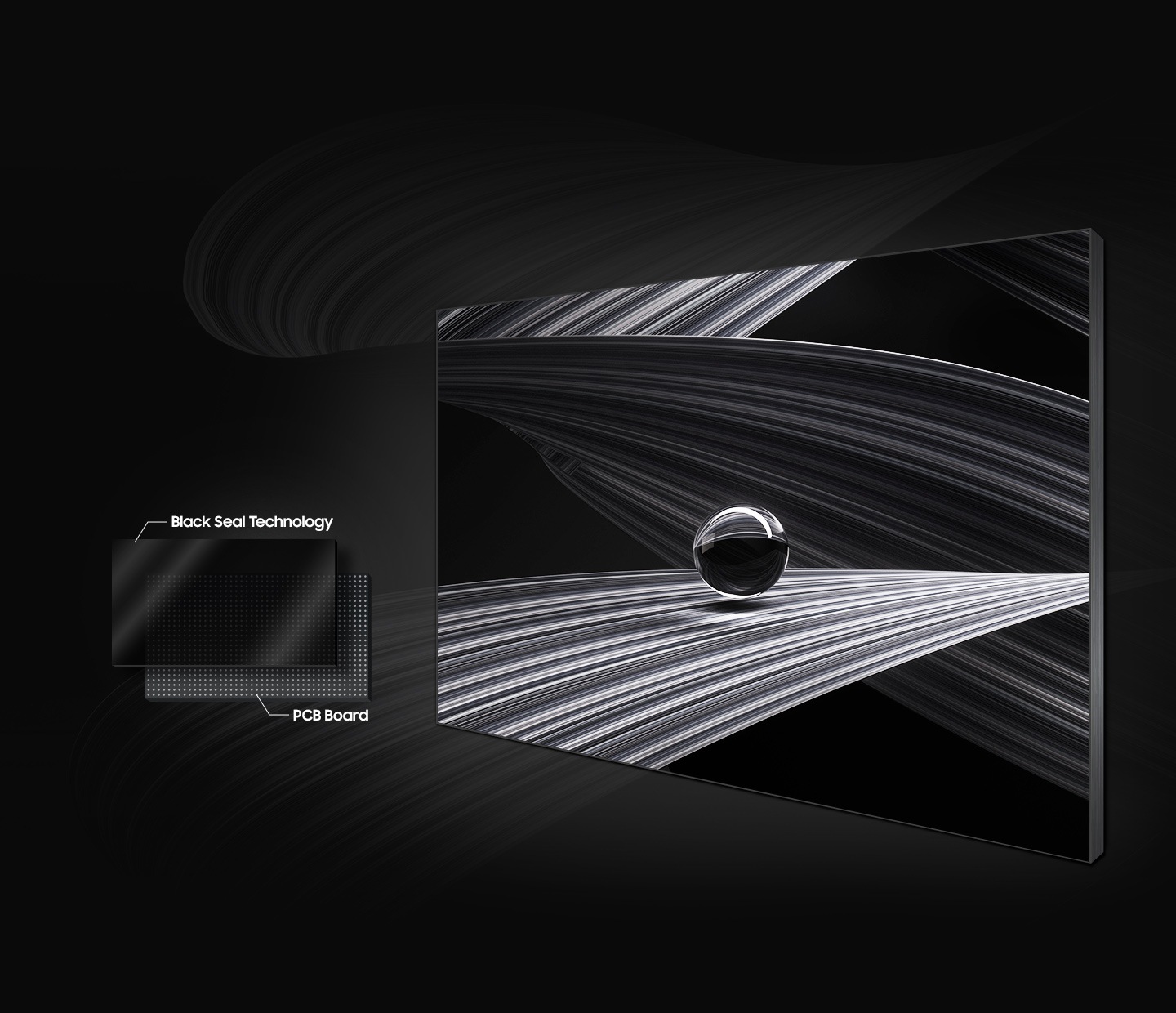

 An abyss of depth
Black Seal Technology
A deep black background blankets the screen with perfect uniformity, creating a seamless canvas for purer black levels with enhanced depth that delivers unparalleled contrast and immaculate detail.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - An abyss of depth

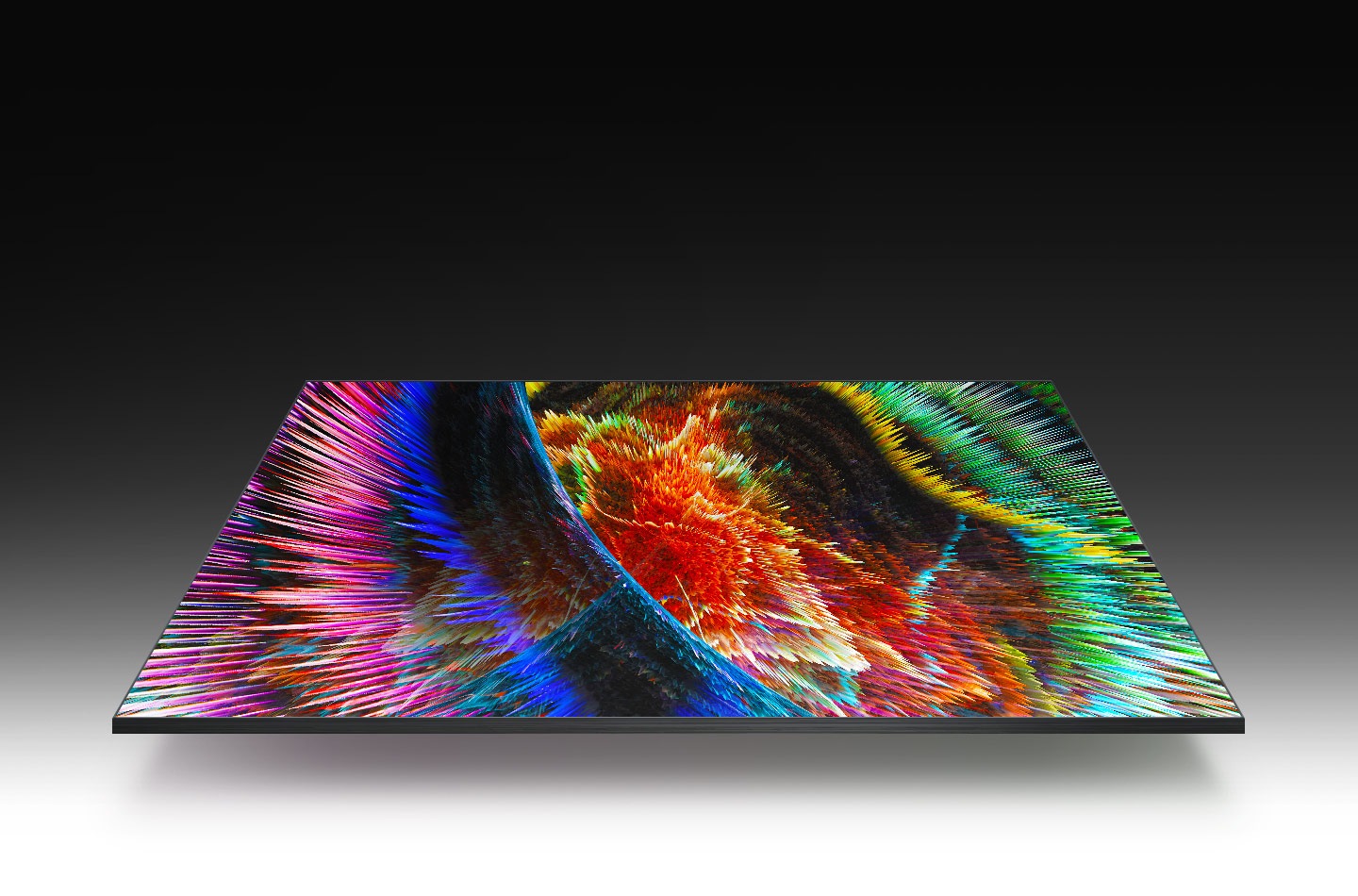

 Superior color purity
Ultra Chroma Technology
Colors leap to life with spectacular vibrancy to recreate scenes as if you were there in real life.
Narrower wavelengths produce RGB colors two times purer* and more accurate than conventional LEDs.
* Figure is based on internal testing standards against Samsung’s conventional LED Signage.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Superior color purity

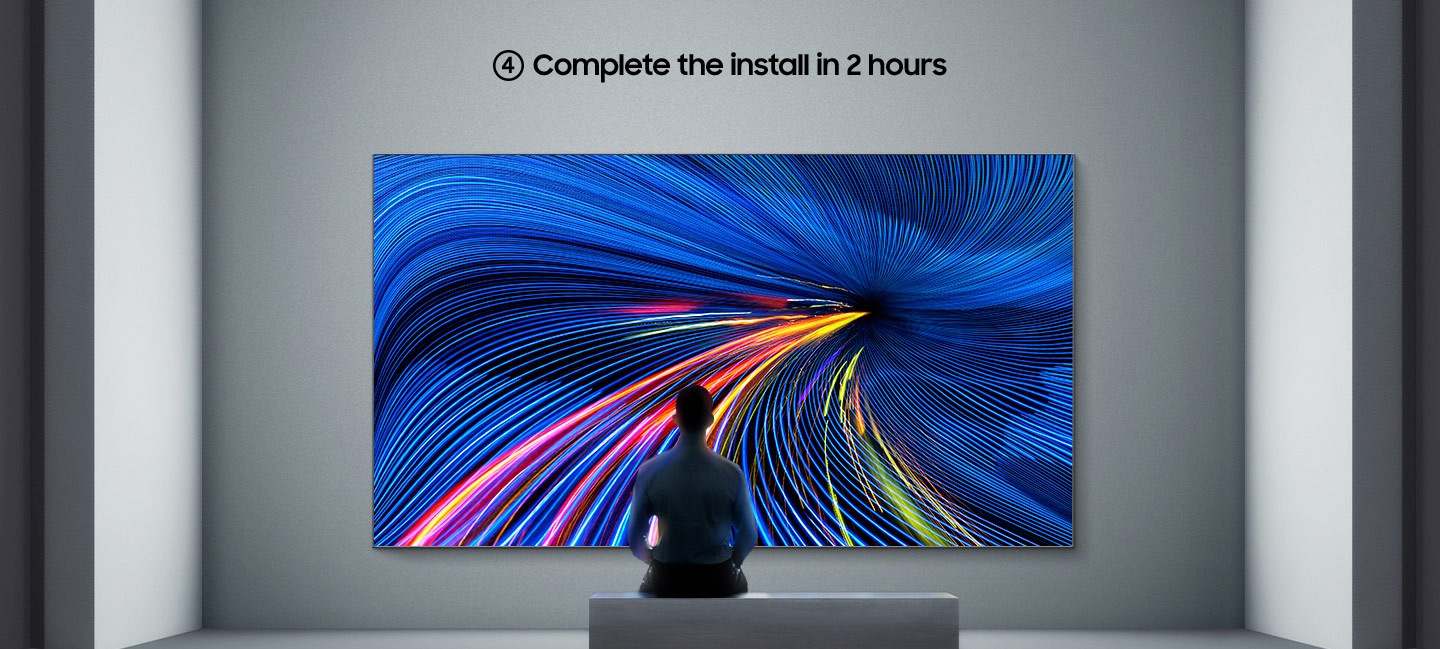

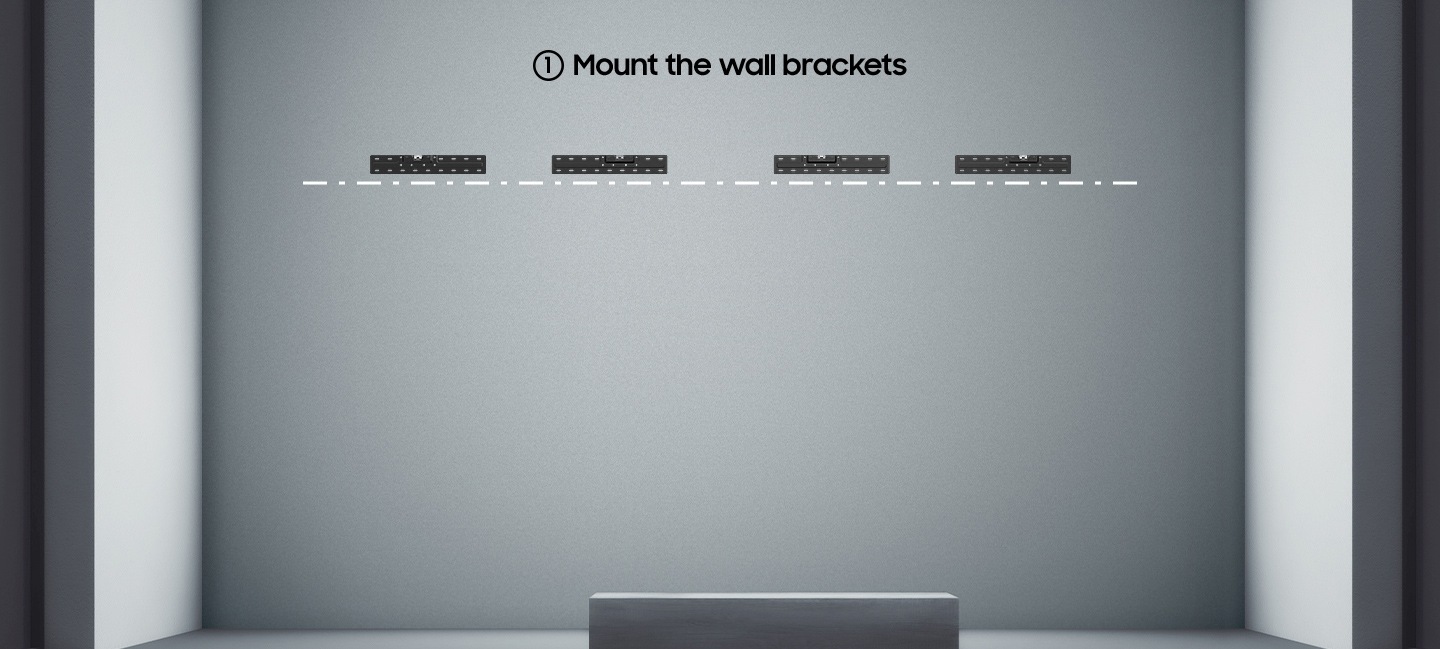

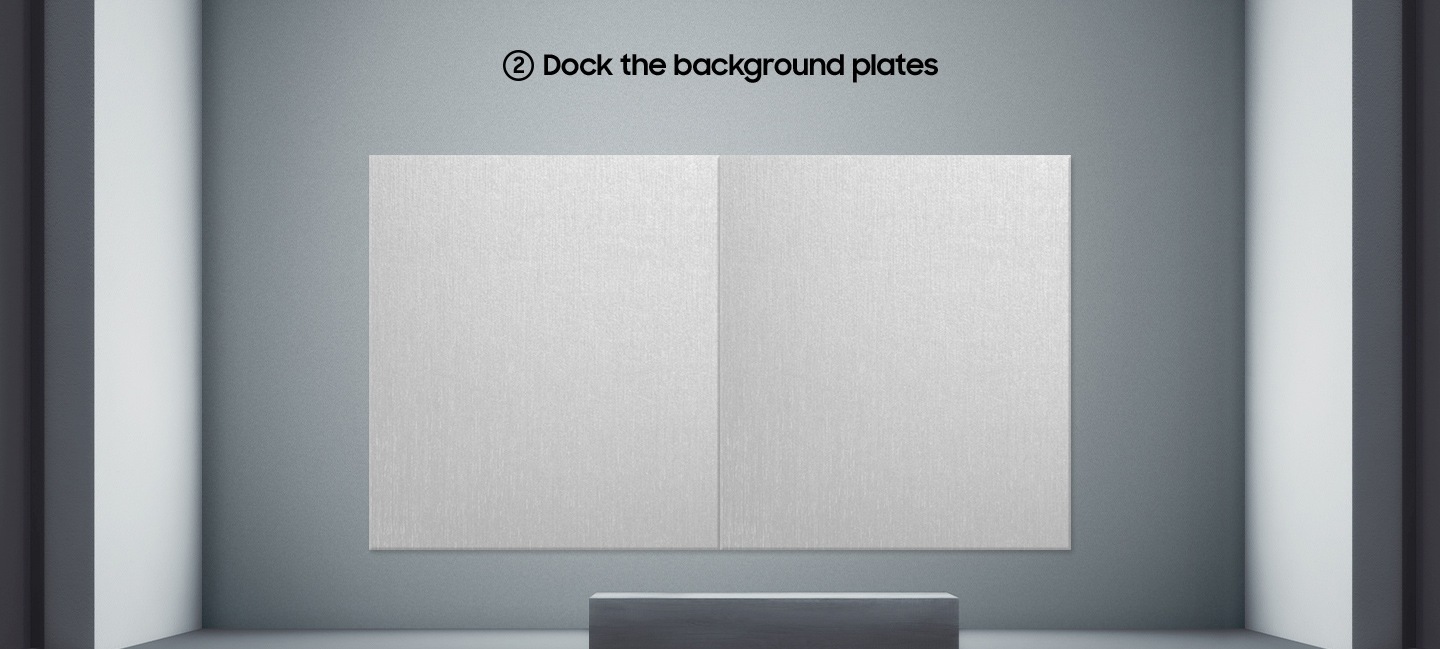

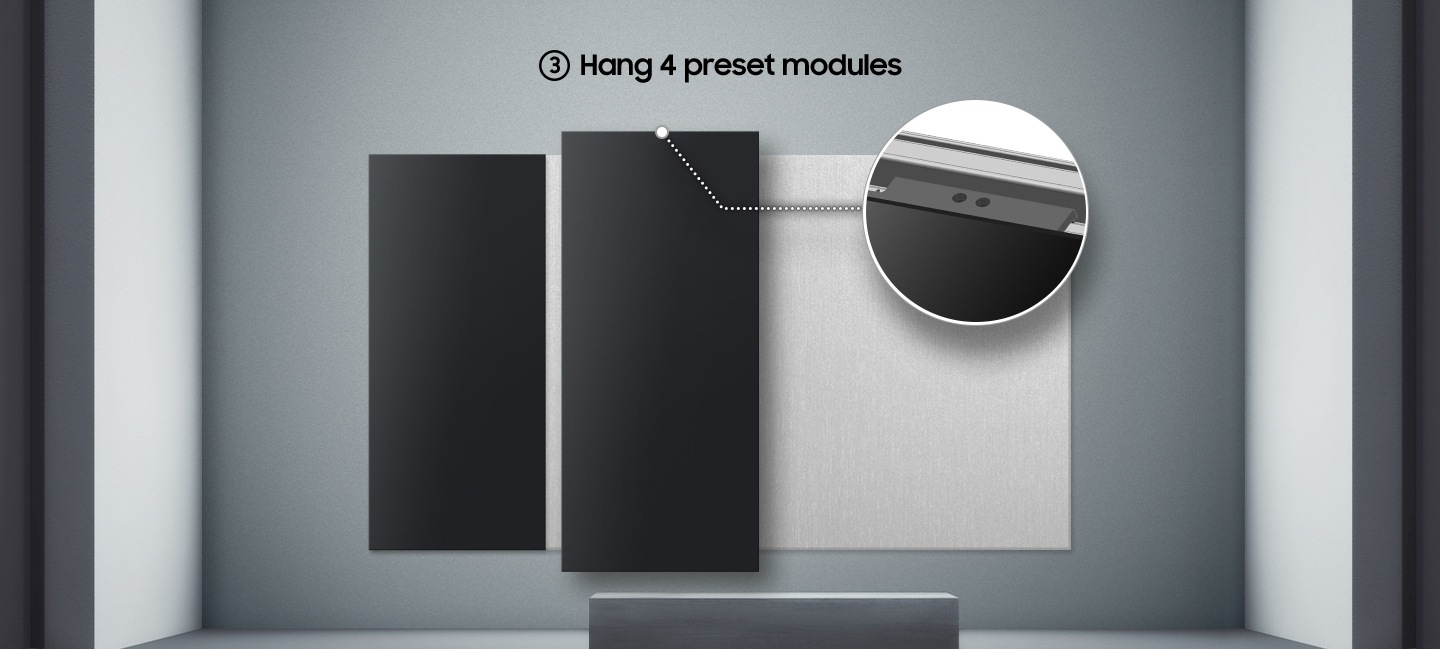

 The installation process, reinvented
Pre-assembled Installation
The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size.
Installation now takes only two hours for two people to complete the screen.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - The installation process, reinvented
* The Wall All-in-One 110-inch model requires three preset modules.
　The 146-inch model requires four preset modules.
* Install time estimate based on internal testing.
 The installation process, reinvented
Pre-assembled Installation
The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size.
Installation now takes only two hours for two people to complete the screen.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - The installation process, reinvented
* The Wall All-in-One 110-inch model requires three preset modules.
　The 146-inch model requires four preset modules.
* Install time estimate based on internal testing.
 The installation process, reinvented
Pre-assembled Installation
The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size.
Installation now takes only two hours for two people to complete the screen.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - The installation process, reinvented
* The Wall All-in-One 110-inch model requires three preset modules.
　The 146-inch model requires four preset modules.
* Install time estimate based on internal testing.
 The installation process, reinvented
Pre-assembled Installation
The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size.
Installation now takes only two hours for two people to complete the screen.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - The installation process, reinvented
* The Wall All-in-One 110-inch model requires three preset modules.
　The 146-inch model requires four preset modules.
* Install time estimate based on internal testing.

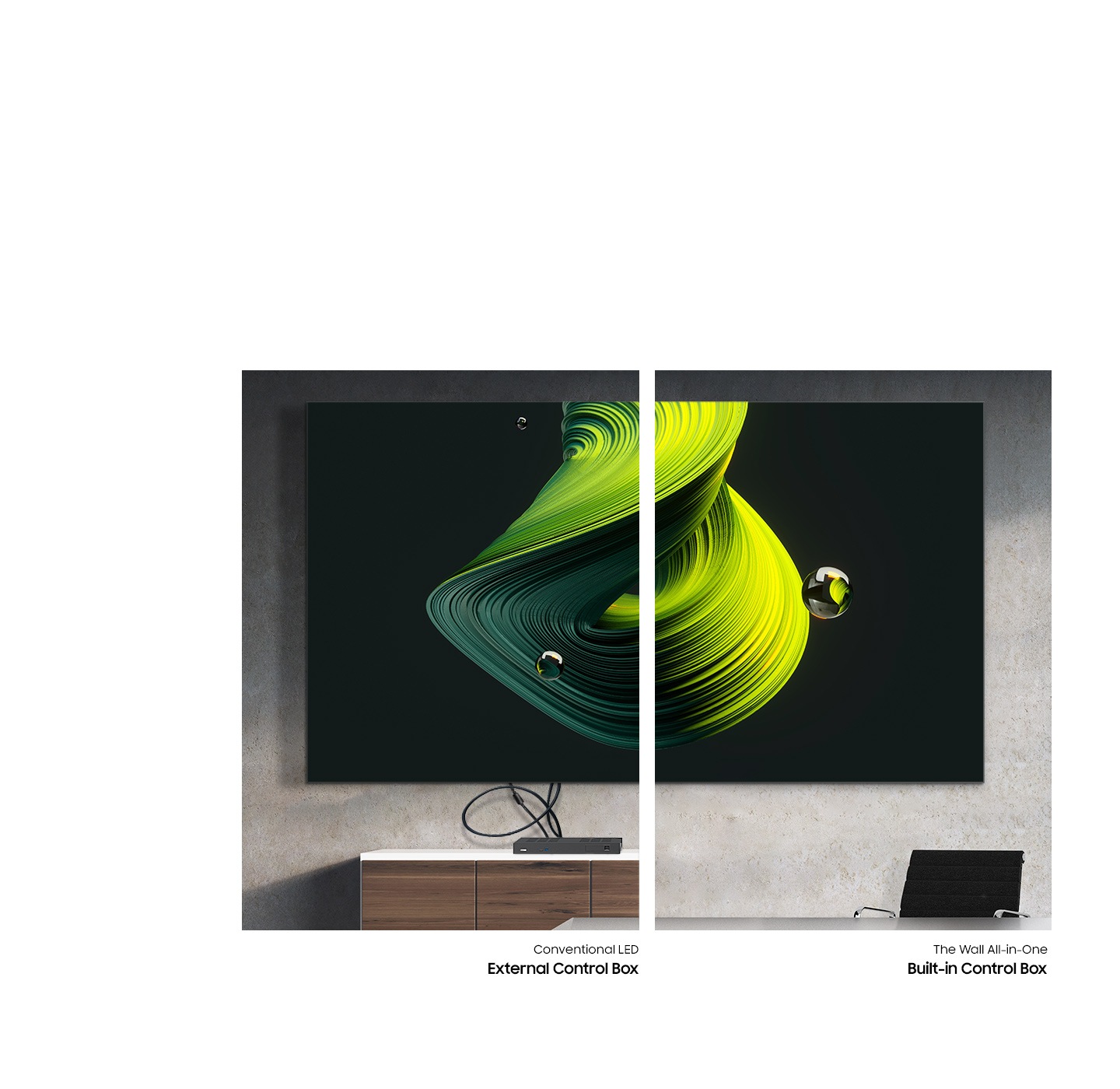

 Auto configuration setup
Built-in Control Box
Time-consuming configuration between control box and cabinet is no longer needed.
The Wall All-in-One integrates the control box so it’s built-into the display, eliminating a cumbersome configuration process to get the display up and running faster.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Auto configuration setup
 Critical decisions without complexity
Simple Choice
The Wall All-in-One removes complex elements traditionally associated with LED displays, creating a streamlined purchase path.
Now, make purchases based on just two factors - resolution and size - without complications such as pixel pitch or configuration.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Critical decisions without complexity

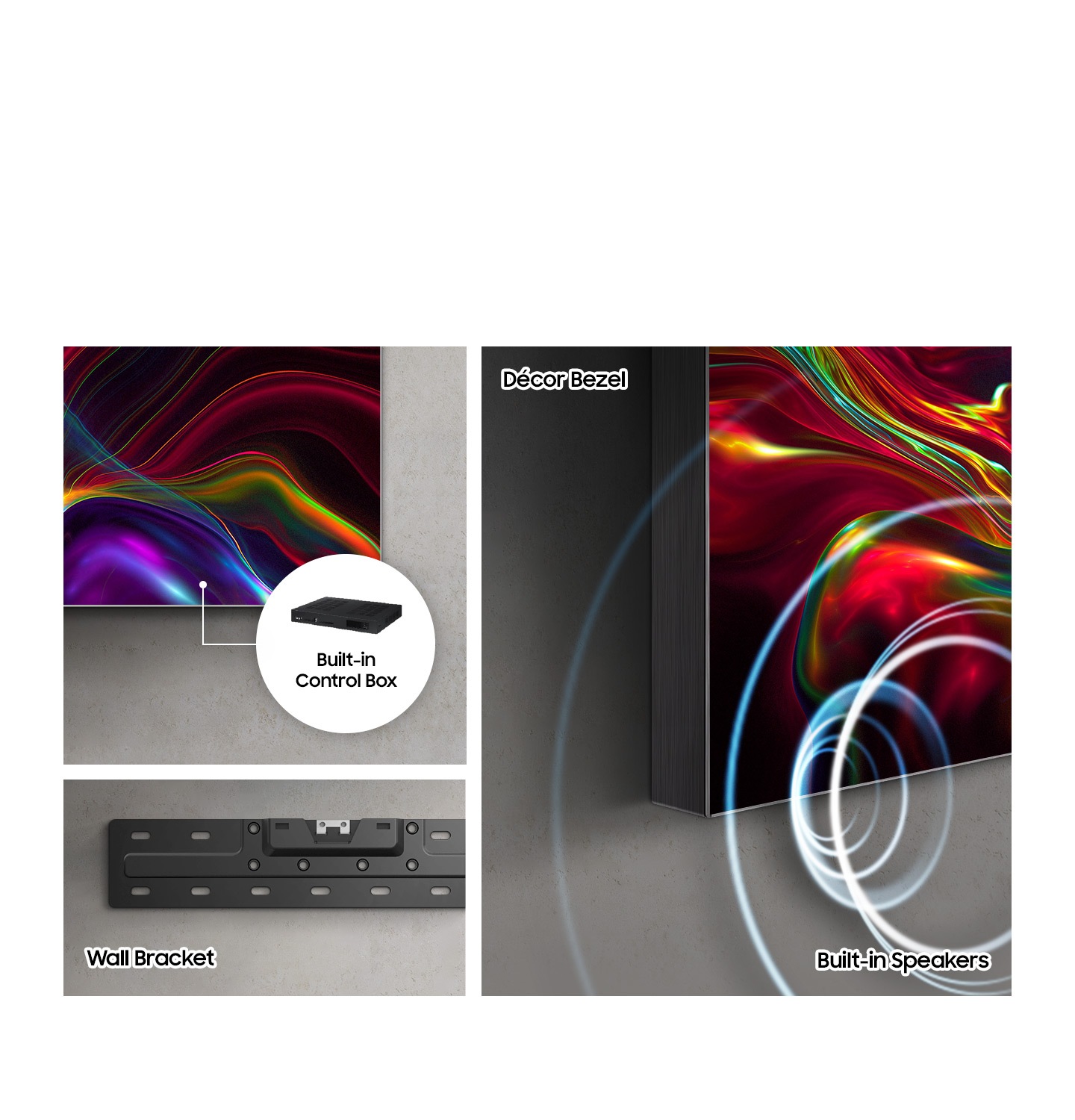

 No extra peripherals needed
All-inclusive Components
The Wall All-in-One includes everything you need to begin operations - from the control box and wall brackets to speakers and deco bezels.
No additional purchases or components are required, allowing you to focus on getting your display up and running fast.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - No extra peripherals needed
 Colors mapped to perfection
20bit Processing
The Wall All-in-One offers 20bit processing to present exact color mapping with faultless accuracy.
Deeper bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Colors mapped to perfection
 Continuous natural shading
Linear Grayscale
A precise linear grayscale showcases intricacies in every scene, delivering textures, volume and continuous shadow details.
The elevated continuity pulls you further into your content for unbroken immersion.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Continuous natural shading

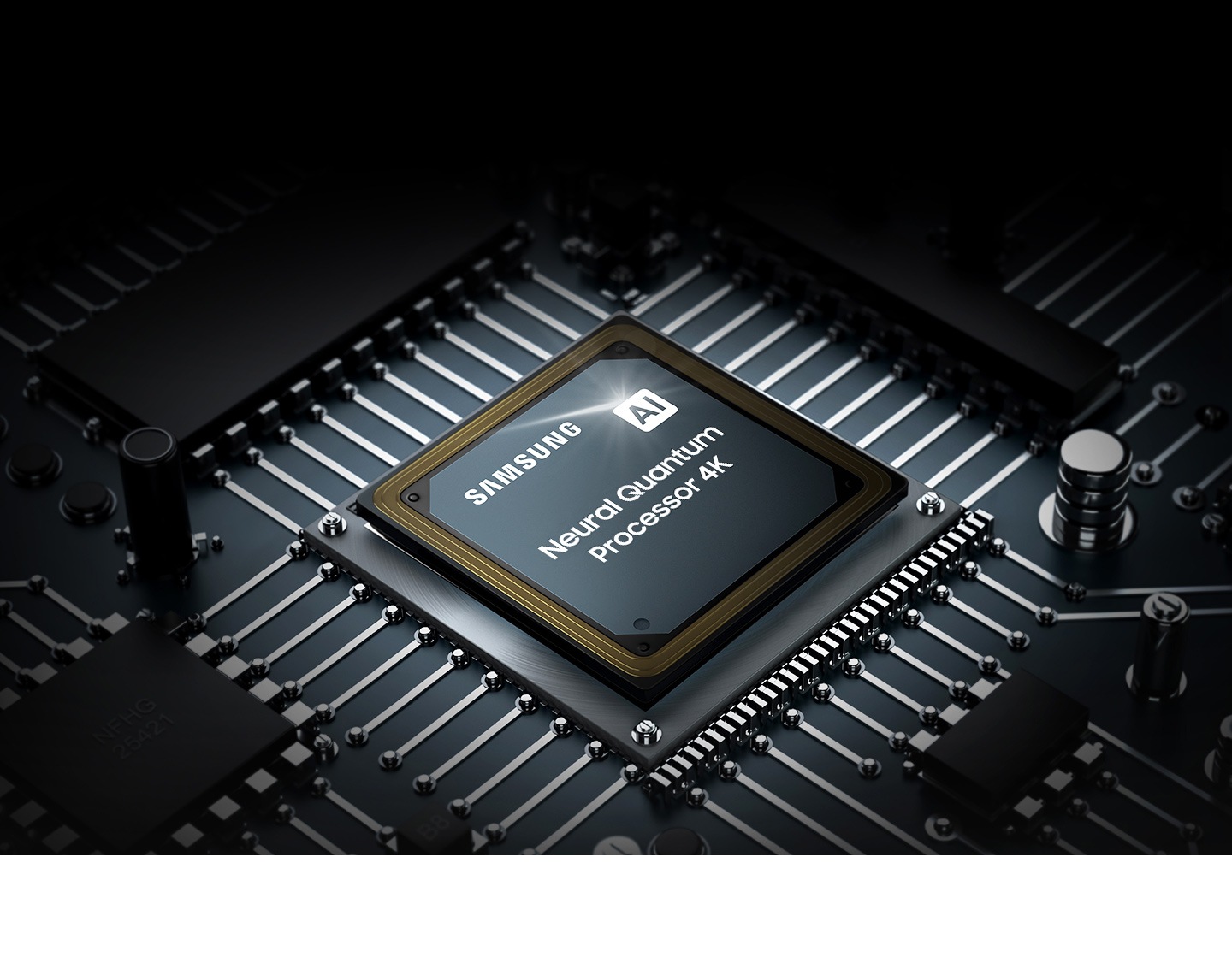

 Instant AI optimization
Neural Quantum Processor 4K
Every second of content is instantly analyzed and optimized for perfect picture quality.
The powerful AI processor delivers superior visuals in any size up to 4K* resolution, enhancing contrast and removing noise.
* The upscaling resolution may vary based on the resolution support of individual models.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Instant AI optimization
 Dazzling dynamic range
MICRO HDR
Reimagine the limits of conventional screens with advanced HDR picture refinement technology to illuminate ideal peak brightness and contrast in every scene for precise, true-to-life imagery.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Dazzling dynamic range
* HDR support may vary depending on viewing conditions and specifications.
 Smooth, seamless motion
MICRO Motion Every motion becomes sharper, with greater clarity. The Wall All-in-One automatically converts standard 60Hz signals to 120Hz, removing motion judder in fast-paced action for smoother streams and a seamless viewing experience, every time.
삼성 사이니지 더월 The Wall - 올인원 All-In-One IAB 시리즈 - Smooth, seamless motion
 삼성 더월 (The Wall) 올인원 IAB 시리즈: 전체 제품 사양
※ 더월 (The Wall) 올인원 IAB 시리즈
- LH008IABMUS/KR (IA008B) : 0.84 mm, 1600nit/500nit, 146인치 4K
- LH012IABMHS/KR (IA012B) : 1.26 mm, 1600nit/500nit, 110인치 2K
- LH016IABMHS/KR (IA016B) : 1.68 mm, 1400nit/500nit, 146인치 2K
더월 (The Wall) 올인원 IAB 시리즈 LH008IABMUS/KR
(IA008B)
146인치 4K		 LH012IABMHS/KR
(IA012B)
110인치 2K		 LH016IABMHS/KR
(IA016B)
146인치 2K
크기(가로x높이x깊이) : 806.4 x 453.6 x 75 ㎜
Operation
Conditions		Working Temperature0℃~+40℃ / 10~80%RH
Physical
Parameter		Pixel Pitch0.84mm1.26mm1.68mm
Pixel Configuration960 x 540640 x 360480 x 270
Diode TypeFlip-chip RGB LED (173*86)
Optical
Parameter		Brightness600 nit1000 nit1200 nit
Contrast Ratio30000:136000:1
Viewing Angle
(Horizontal/Vertical)		170/155 °
Color Temperature6,500K ± 500K (floating bin) K
Electrical
Parameter		Video Rate120 Hz
Input Voltage
(alternating current)		100~240V AC V
Power Frequency50/60 Hz
Power Consumption
(Max)		355 W/㎡410 W/㎡446 W/㎡
Frame Rate3840 Hz
Certification
and Compliance		Safety60950-1
EMCClass B
 삼성 더월 (The Wall) IWA 시리즈(곡면 설치용) : 전체 제품 사양
※ 더월 (The Wall) IWA 시리즈 (곡면 설치용)
- LH008IWAMWS/XU (IW008A) : 0.84 mm, 1600nit/500nit(w/S-Box),
   1600nit/350nit(w/M-Box)
- LH012IWAMWS/XU (IW012A) : 1.26 mm, 1600nit/800nit
- LH016IWAMWS/XU (IW016A) : 1.68 mm, 1400nit/1000nit
■ 더월 IWA : 곡면 설치용 / 더월 IWC : 평면 설치용
더월 (The Wall) IWA 시리즈 LH008IWAMWS/XU
(IW008A)		 LH012IWAMWS/XU
(IW012A)		 LH016IWAMWS/XU
(IW016A)
크기(가로x높이x깊이) : 806.4 x 453.6 x 36.5 ㎜
Operation
Conditions		Working Temperature-0℃~+40℃ / 10~80%RH
Physical
Parameter		Pixel Pitch0.84mm1.26mm1.68mm
Pixel Configuration-640 x 360480 x 270
Diode TypeFlip-chip RGB LED (182*93)
Optical
Parameter		Brightness-800 nit1000 nit
Contrast Ratio-12000:116000:1
Viewing Angle
(Horizontal/Vertical)		-160/140 °
Color Temperature-6,500K ± 500K (floating bin) K
Electrical
Parameter		Video Rate-120 Hz
Input Voltage
(alternating current)		100~240V AC V
Power Frequency50/60 Hz
Power Consumption
(Max)		383 W/㎡411 W/㎡
Frame Rate-3840 Hz3840 / 7680 Hz
Certification
and Compliance		Safety60950-1
EMCClass B
 삼성 더월 (The Wall) IWC 시리즈(평면 설치용): 전체 제품 사양
※ 더월 (The Wall) IWC 시리즈 (평면 설치용)
- LH008IWCMWS/XU (IW008C) : 0.84 mm, 1800nit/600nit(w/S-Box)
- LH012IWCMWS/XU (IW012C) : 1.26 mm, 1800nit/1000nit
- LH016IWCMWS/XU (IW016C) : 1.68 mm, 1600nit/1200nit
■ 더월 IWA : 곡면 설치용 / 더월 IWC : 평면 설치용
더월 (The Wall) IWC 시리즈 LH008IWCMWS/XU
(IW008C)		 LH012IWCMWS/XU
(IW012C)		 LH016IWCMWS/XU
(IW016C)
크기(가로x높이x깊이) : 806.4 x 453.6 x 75 ㎜
Operation
Conditions		Working Temperature0℃~+40℃ / 10~80%RH
Physical
Parameter		Pixel Pitch0.84mm1.26mm1.68mm
Pixel Configuration960 x 540640 x 360480 x 270
Diode TypeFlip-chip RGB LED (173*86)
Optical
Parameter		Brightness600 nit1000 nit1200 nit
Contrast Ratio30000:136000:1
Viewing Angle
(Horizontal/Vertical)		170/155 °
Color Temperature6,500K ± 500K (floating bin) K
Electrical
Parameter		Video Rate120 Hz
Input Voltage
(alternating current)		100~240V AC V
Power Frequency50/60 Hz
Power Consumption
(Max)		355 W/㎡410 W/㎡446 W/㎡
Frame Rate3840 Hz
Certification
and Compliance		Safety60950-1
EMCClass B
 삼성 더월 (The Wall) - IWA / IWC / All-In-One(IAB) 제품
※ 더월 (The Wall) IWC 시리즈 (평면 설치용)
- IWA 시리즈 (곡면 설치용)
- IWC 시리즈 (평면 설치용)
- All-In-One 시리즈 (일체형)
삼성 더월 (The Wall)모델명비고
IWA
(곡면 설치용)		P0.84캐비닛 본체LH008IWAMWS/XU (IW008A)UHD 18대 1세트
P1.26캐비닛 본체LH012IWAMWS/XU (IW012A)FHD 10대 1세트
P1.68캐비닛 본체LH016IWAMWS/XU (IW016A)FHD 18대 1세트
IWC
(평면 설치용)		P0.84캐비닛 본체LH008IWCMWS/XU (IW008C)UHD 18대 1세트
P1.26캐비닛 본체LH012IWCMWS/XU (IW012C)FHD 10대 1세트
P1.68캐비닛 본체LH016IWCMWS/XU (IW016C)FHD 18대 1세트
All-In-One
(일체형)		P0.84일체형LH008IABMUS/KR (IA008B)146＂ 4K 일체형
(스마트기능 無, Built-in Speaker)
P1.26일체형LH012IABMHS/KR (IA012B)110＂ FHD 일체형
(스마트기능 無, Built-in Speaker)
P1.68일체형LH016IABMHS/KR (IA016B)146＂ FHD 일체형
(스마트기능 無, Built-in Speaker)
S-BoxIWA영상입력장치SBB-SNOWAAEXKRIWA 지원(~8K 지원)
IWA영상입력장치SBB-MBOXACE/KRIWA P0.84 전용
I/G CARDIWAI/G CARDCY-IGAOFSXKRSBB-SNOWAAEXKR용 IG카드
자석지그IWA옵션물CY-WJAPWP최소 1개이상, Set 당 1개씩 추가
IWC옵션물CY-WJCPWP/EN최소 1개이상, Set 당 1개씩 추가
파워코드세트공용옵션물VG-WR00PKIT4x4 구성 기준 1set
데이터
케이블세트		공용옵션물VG-WA10PKIT세트당 데이터케이블 5ea,
전원연장케이블 5ea 포함
설치프레임킷IWA옵션물VG-LFA33SWW3x3 구성시(전면 유지보수형)
옵션물VG-LFA44SWW4x4 구성시(전면 유지보수형)
옵션물VG-LFA55SWW5x5 구성시(전면 유지보수형)
옵션물VG-LFAC2SCW2단(4x2) Curved 설치용
(후면 유지보수형)
옵션물VG-LFAC3SCW3단(4x3) Curved 설치용
(후면 유지보수형)
옵션물VG-LFAC4SCW4단(4x4) Curved 설치용
(후면 유지보수형)
옵션물CY-WJAPWCCurved Jig
IWC옵션물VG-LFC11SWW/EN1x1 구성시
옵션물VG-LFC22SWW/EN2x2 구성시
옵션물VG-LFC33SWW/EN3x3 구성시
옵션물VG-LFC44SWW/EN4x4 구성시
옵션물VG-LFC55SWW/EN5x5 구성시
데코프레임IWA옵션물VG-LFA11SDW1x1 구성시
옵션물VG-LFA33SDW3x3 구성시
옵션물VG-LFA44SDW4x4 구성시
옵션물VG-LFA55SDW5x5 구성시
IWC옵션물VG-LFC22SDW/EN2x2 구성시
옵션물VG-LFC33SDW/EN3x3 구성시
옵션물VG-LFC44SDW/EN4x4 구성시
옵션물VG-LFC55SDW/EN5x5 구성시
옵션물VG-LFC11SEW/EN1x1 구성시(확장형)
옵션물VG-LFC22SEW/EN2x2 구성시(확장형)
옵션물VG-LFC33SEW/EN3x3 구성시(확장형)
옵션물VG-LFC44SEW/EN4x4 구성시(확장형)
옵션물VG-LFC55SEW/EN5x5 구성시(확장형)
