삼성 LED 사이니지 실내용 IFR 시리즈

 Completely captivating. Fully flexible.
LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers.
Samsung’s IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.
삼성 사이니지 실내용 IFR 시리즈 - Completely captivating. Fully flexible.
 Best-in-class LED picture quality
Drawing on Samsung’s industry leadership experience and years of innovation in visual display technology, the displays produce images with vivid color expression, reduced noise and a full range of grays and blacks.
삼성 사이니지 실내용 IFR 시리즈 - Best-in-class LED picture quality
삼성 사이니지 실내용 IFR 시리즈 - Best-in-class LED picture quality
 Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is.
The IFR series supports HDR10+ which optimizes brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended.
삼성 사이니지 실내용 IFR 시리즈 - Pin-sharp clarity, bright or dark
 HDR experience in large scale
With Multi-link HDR technology, IFR series delivers more impactful content than ever before, providing HDR quality content up to 8K resolution.
Multi-link HDR turns any content into HDR-level and is a flexible solution that can be applied to various layouts and screen sizes with less cabling.
삼성 사이니지 실내용 IFR 시리즈 - HDR experience in large scale

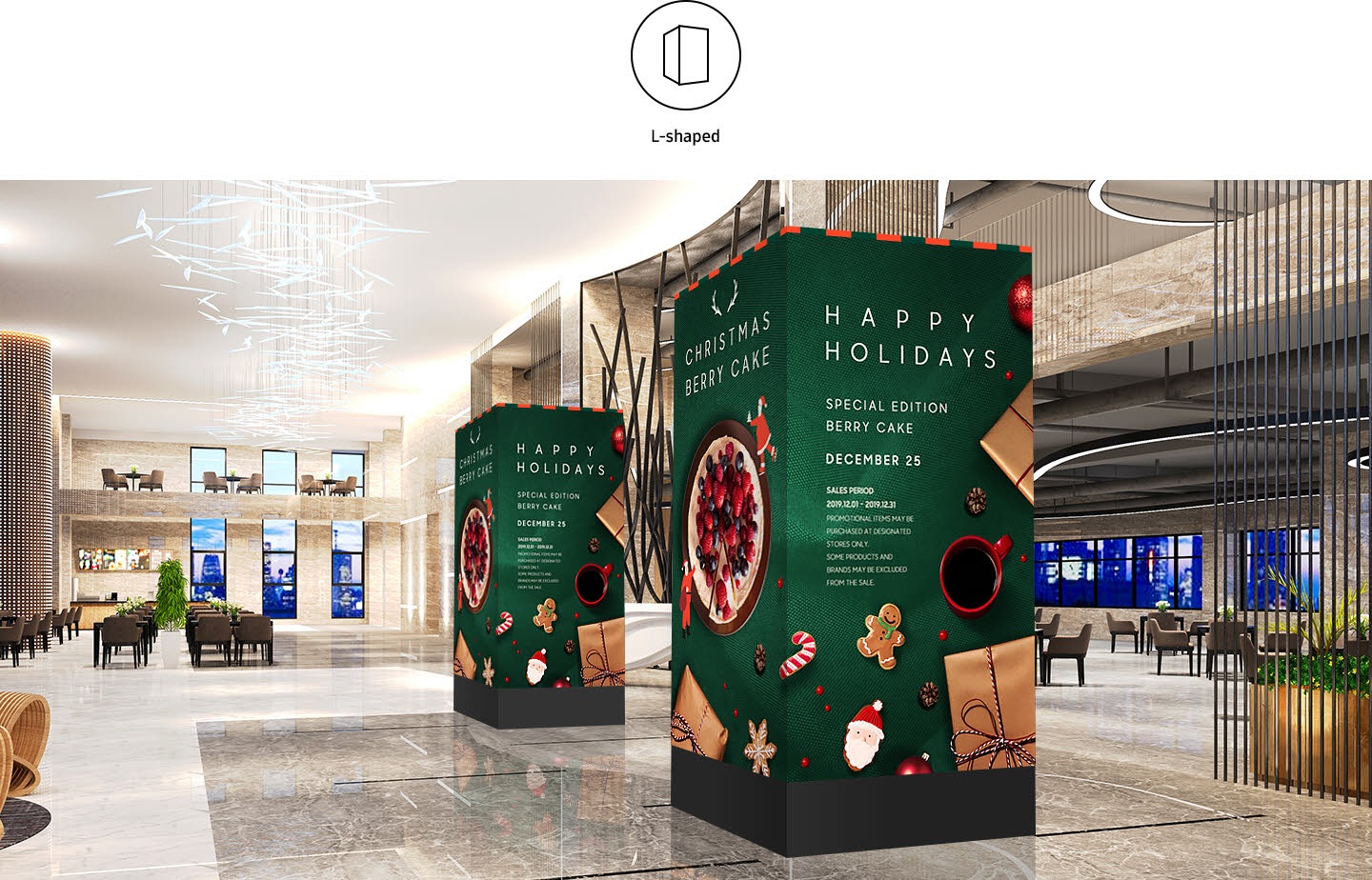

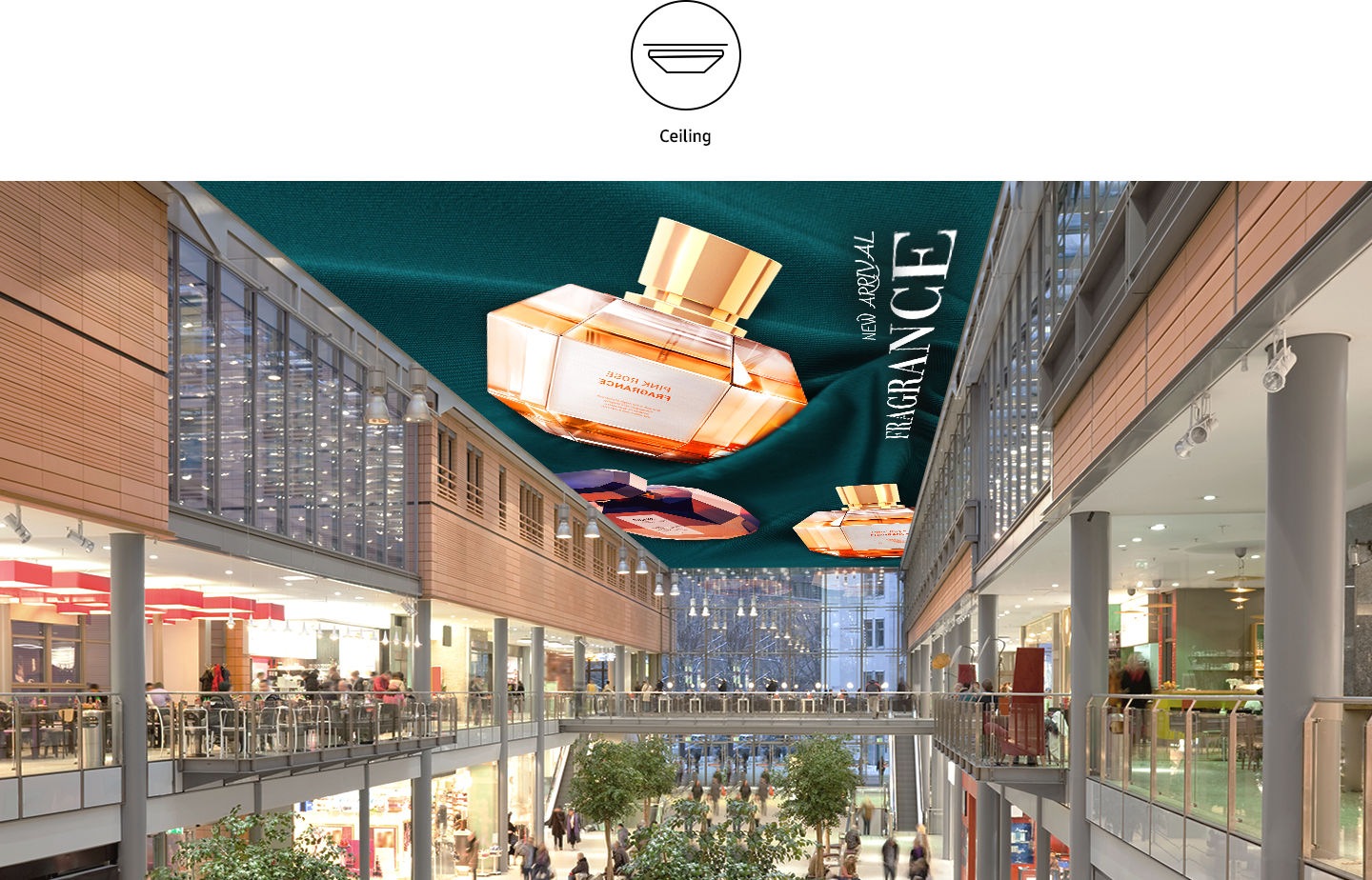

 Flexible design for any location
IFR series features two cabinet types of differing sizes to provide more flexibility in design.
With support of portrait, landscape, curved and L-shaped installations, businesses can have ultimate control to create the ideal display for their space.
삼성 사이니지 실내용 IFR 시리즈 - Flexible design for any location
삼성 사이니지 실내용 IFR 시리즈 - Flexible design for any location
삼성 사이니지 실내용 IFR 시리즈 - Flexible design for any location
삼성 사이니지 실내용 IFR 시리즈 - Flexible design for any location
삼성 사이니지 실내용 IFR 시리즈 - Flexible design for any location
 Screen uniformity all the time
On-site PC and mobile calibration combined with multi-step factory calibration tunes the whole screen of LED displays to uniform brightness and color.
Color Expert LED Mobile provides a quick and easy calibration, requiring nothing more than a mobile phone and a Wi-Fi connection.
삼성 사이니지 실내용 IFR 시리즈 - Screen uniformity all the time
 Seamless, smooth content playback
Frame rate synchronization guarantees smooth content without screen tearing when multiple S-boxes are connected.
This means users can enjoy almost perfectly smooth playback even when combining or splitting content across cabinets.
삼성 사이니지 실내용 IFR 시리즈 - Seamless, smooth content playback
삼성 사이니지 실내용 IFR 시리즈 - Seamless, smooth content playback

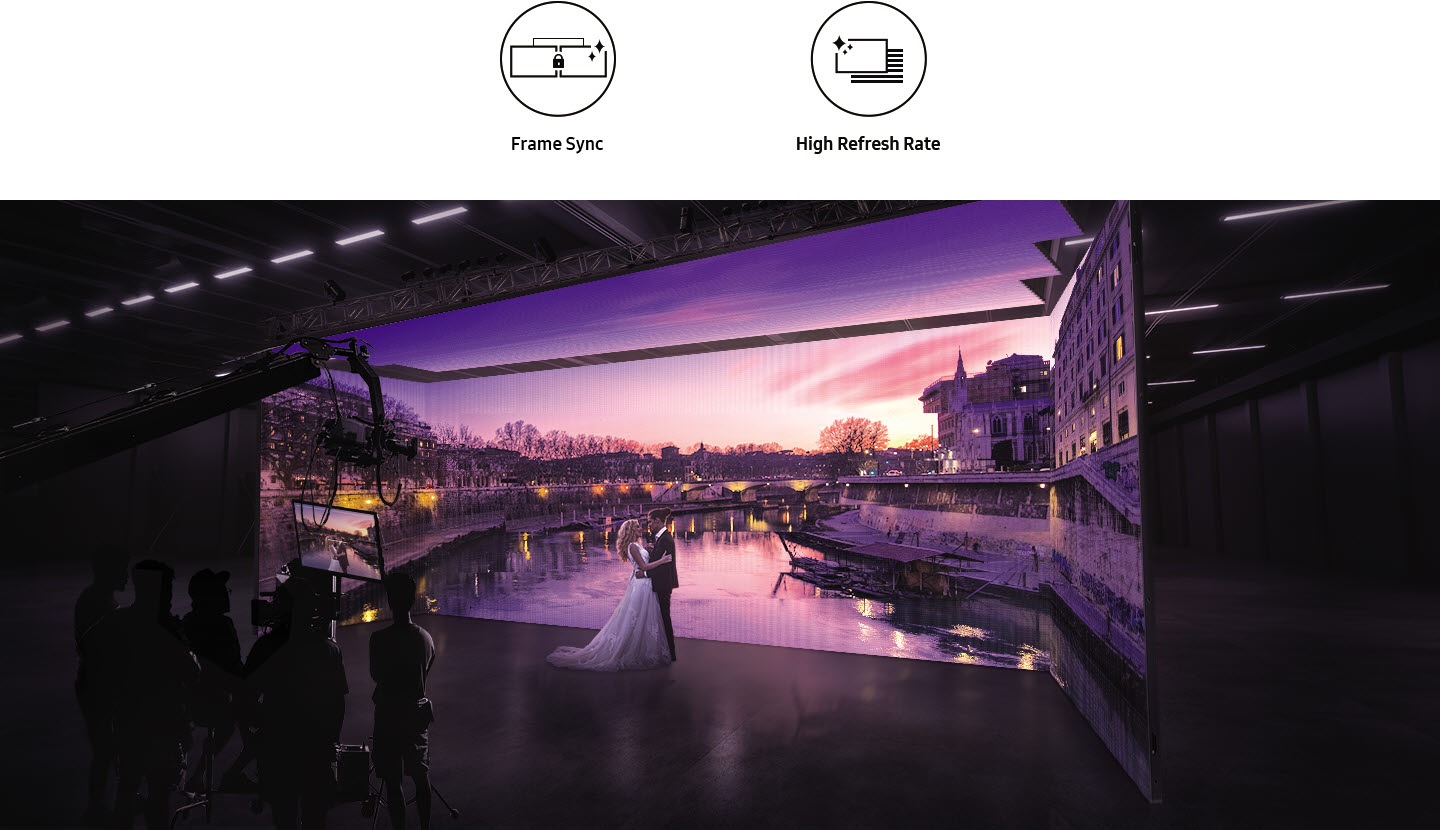

 Built for the studio
Samsung’s IFR series is built for studio shooting.
Supporting frame rate synchronization and a high refresh rate to minimize flicker lines, the display helps producers create incredibly engaging and immersive content, with levels of detail like never before.
삼성 사이니지 실내용 IFR 시리즈 - Built for the studio
 삼성 LED 사이니지 실내용 IFR 시리즈 : 전체 제품 사양
※ 실내용 IFR 시리즈 (픽셀 피치 1.5mm, 2.5mm)
- Best-in-class picture quality
- Flexible design
- Efficient operation
- 크기 : 960 x 540 x 79.5 mm
- LH015IFRCLS/KR (IF015R) : 1.5mm, 800nit
- LH025IFRCLS/KR (IF025R) : 2.5mm, 1000nit
실내용 IFR 시리즈 LH015IFRCLS/KR
(IF015R)		 LH025IFRCLS/KR
(IF025R)
크기(가로x높이x깊이) : 960.0 x 540.0 x 79.5 mm
Operation
Conditions		Working Temperature0℃~+40℃/10~80%RH
IP RatingIP20
Physical
Parameter		Pixel Pitch1.5mm2.5mm
Pixel Configuration640x360384x216
Diode Type3-in-1 10103-in-1 2121
Optical
Parameter		Brightness800nit1000nit
Viewing Angle
(Horizontal/Vertical)		160/160°
Color Temperature6,500K+-500K(floating Bin)
Electrical
Parameter		Video Rate50/60Hz
Input Voltage
(alternating current)		100~240VAC
Power Frequency50/60Hz
Power Consumption (Max)694W502W
Refresh Rate (Hz)3840Hz3240Hz
Certification
and Compliance		Safety60950-1
EMCClass A
 삼성 LED 사이니지 실내용 IFR-F 시리즈 : 전체 제품 사양
※ 실내용 IFR-F 시리즈 (픽셀 피치 1.5mm, 2.5mm)
- IFR의 1/4 크기
- Best-in-class picture quality
- Flexible design
- Efficient operation
- 크기 : 240 x 540 x 81 mm
- LH015IFRCFS/KR (IF015R-F) : 1.5mm, 800nit
- LH025IFRCFS/KR (IF025R-F) : 2.5mm, 1000nit
실내용 IFR-F 시리즈 LH015IFRCFS/KR
(IF015R-F)		 LH025IFRCFS/KR
(IF025R-F)
크기(가로x높이x깊이) : 960.0 x 540.0 x 81 mm
Operation
Conditions		Working Temperature0℃~+40℃/10~80%RH
IP RatingIP20
Physical
Parameter		Pixel Pitch1.5mm2.5mm
Pixel Configuration160x36096x216
Diode Type3-in-1 10103-in-1 2121
Optical
Parameter		Brightness800nit1000nit
Viewing Angle
(Horizontal/Vertical)		160/160℃
Color Temperature6,500K+-500K(floating Bin)
Electrical
Parameter		Video Rate50/60Hz
Input Voltage
(alternating current)		100~240VAC
Power Frequency50/60Hz
Power Consumption (Max)733W617W
Refresh Rate (Hz)3840Hz3240Hz
Certification
and Compliance		Safety60950-1
EMCClass A
