NEC FT 서버의 사양 (R320f 모델)




 NEC R320f-E4, R320f-M4 모델 제품 사양 (VMware 모델)
NEC R320f-E4, R320f-M4 모델의 제품 사양
Windows Model : R320f-E4 (N8800-218F), R320f-M4 (N8800-219F)
VMware Model : R320f-E4 (N8800-218F), R320f-M4 (N8800-219F)
R320f-E4 (N8800-218F) R320f-M4 (N8800-219F)
Form factor / height 4U rack
Number of logical processors 1 to 2
Processors Intel® Xeon® Processor E5-2630 v4
(2.20 GHz/10-core/25 MB)
Intel® Xeon® Processor E5-2671 v4
(2.30 GHz/14-core/35 MB)
Memory type DDR4-2400 ECC RDIMM
DDR4-2400 ECC LRDIMM
Memory Clock 2133 MHz
Logical Memory slots 16
Maximum logical memory 512 GB
Storage type Hot plug 2.5-inch SAS HDD
Hot plug 2.5-inch SAS SSD
Logical hard drive bays 8
Maximum logical internal storage 9.6 TB
Optical drive DVD Super Multi drive
Logical expansion slots 2 Low-profile PCIe 3.0 x4 2 Low-profile PCIe 3.0 x4
2 Full-height PCIe 3.0 x8
Video (VRAM) Integrated in the server management controller (32 MB)
Logical network interface 2 1000BASE-T
1 100BASE-TX for management
2 10GBASE-T
2 1000BASE-T
1 100BASE-TX for management
Power supply 800 Watt (1 per module, 80 PLUS® Platinum certified)
Systems management EXPRESSSCOPE Engine 3
External Interface 1 VGA, 4 USB 2.0, 4 LAN (2 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module)
1 VGA, 4 USB 2.0, 8 LAN (4 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module)
*The USB 3.0 connectors are not available for VMware ESXi.
Dimensions (W x D x H) and
maximum weight
483 x 734 x 176 mm / 19.0 x 28.9 x 6.9 in 51 Kg / 112.44 lbs.
Temperature and humidity conditions
(non-condensing)
Operating: 10 to 40 °C/ 50 to 104 °F , 20 to 80%
Non-operating: -10 to 55°C/14 to 131°F, 20 to 80%
Operating systems and virtualization
software
Microsoft® Windows Server® 2012 R2 Standard
Microsoft® Windows Server® 2012 R2 Datacenter
Microsoft® Windows Server® 2016 Standard
Microsoft® Windows Server® 2016 Datacenter
VMware® ESXi 6.5
 高가용성, 高성능 FT 서버 (R320f-M4 / R320f-E4)
▶ 모든 주요 부품을 이중화한 무정지 서버
▶ Xeon E5-2671 v4(14코어/2.3GHz) / E5-2630 v4(10코어/2.2GHz)
  다중 코어 高성능 CPU 탑재
▶ 높은 확장성으로 다양한 업무 분야에 도입 가능
  - 2.5인치 HDD 및 SSD 탑재 (HDD 최대 9.6TB / SSD 최대 1.6TB 가능)
  - 최신 DDR4-2400 메모리 탑재, 최대 512GB 대용량 메모리 구성 지원
▶ ExpressScope® Engine3을 표준 탑재하여, 관리 운영의 편의성 제공
高가용성, 高성능 FT 서버 (R320f-M4 / R320f-E4)

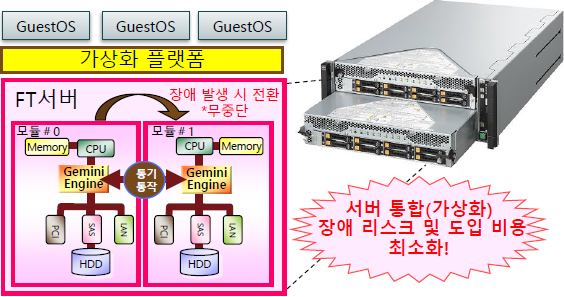

< R320f-M4 / R320f-E4 모델 NEC FT 서버 >
하드웨어의 장애발생 및 부품교환 시에도, 시스템이 중단되지 않는 高가용성 설계
GeminiEngine™ 기술로 시스템을 이중화 구현하므로, H/W 장애 발생 시에도 업무 시스템이 중단되지 않으며, 업무 시스템의 운영중에도 부품 교환이 가능합니다.
하드웨어의 장애발생 및 부품교환 시에도, 시스템이 중단되지 않는 高가용성 설계
 자료 다운로드 (NEC R320f-E4, R320f-M4 모델)
 [영어] NEC R320f Datasheet 파일 (R320f_datasheet.pdf) [2018년 8월]
 [영어] NEC R320f Configuration Guide (Windows model) 파일
  (R320fWIN_configguide.pdf) [2018년 4월]

 [영어] NEC R320f Configuration Guide (VMware model) 파일
  (R320fVM_configguide.pdf) [2018년 5월]

 [일본어] NEC Exress5800 FT Server 카탈로그 파일 (ft.pdf) [2019년 2월]
 [일본어] NEC R320f 구성 가이드 (Windows Server 2012 R2 model) 파일
  (r320fe4fm4_ws2012r2.pdf) [2019년 2월(4판)]

 [일본어] NEC R320f 구성 가이드 (VMware model) 파일
  (r320fe4fm4_vm.pdf) [2019년 4월(6판)]

 NEC FT 서버 제품에 대한 상담 및 문의  :  fhubis@fhubis.co.kr 또는 02-508-7885
 제품에 대한 상담 및 필요하신 NEC FT 서버 제품 관련 자료를 제공해 드리겠습니다.
