R320e-E4 (N8800-201F) |
R320e-M4 (N8800-202F) |
| Form factor / height |
4U rack |
| Number of logical processors |
1 to 2 |
| Processors |
Intel® Xeon® Processor E5-2630 v3
(2.40 GHz/8-core/20 MB) |
Intel® Xeon® Processor E5-2670 v3
(2.30 GHz/12-core/30 MB) |
| Chipset |

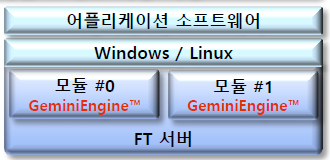

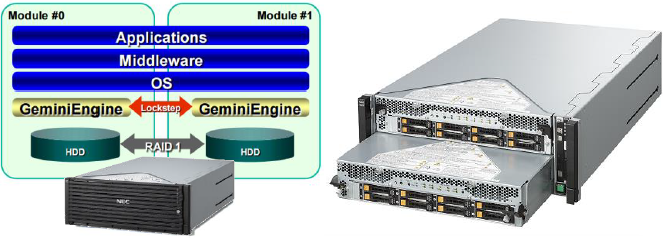

Intel® C612 Chipset with GeminiEngine™ |
| Memory type |
DDR4-2133 ECC RDIMM
DDR4-2133 ECC LRDIMM |
| Memory Clock |
1866 MHz |
| Logical Memory slots |
16 |
| Maximum logical memory |
512 GB |
| Storage type |
Hot plug 2.5-inch SAS HDD
Hot plug 2.5-inch SAS SSD |
| Logical hard drive bays |
8 |
| Maximum logical internal storage |
9.6 TB |
| Optical drive |
DVD-RAM drive |
| Logical expansion slots |
2 Low-profile PCIe x4 Gen 3 |
2 Low-profile PCIe x4 Gen 3
2 Full-height PCIe x8 Gen 3 |
| Video (VRAM) |
Integrated in the server management controller (32 MB) |
| Logical network interface |
2 1000BASE-T
1 100BASE-TX for management |
2 10GBASE-T
2 1000BASE-T
1 100BASE-TX for management |
| Maximum power consumption |
1430 VA / 1420 Watt |
| Power supply |
800 Watt (1 per module, 80 PLUS® Platinum certified) |
| Systems management |
EXPRESSSCOPE Engine 3 |
| External Interface |
1 VGA, 4 USB 2.0, 4 LAN (2 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module) |
1 VGA, 4 USB 2.0, 8 LAN (4 per module),
2 management LAN (1 per module),
2 or 4 optional USB 3.0 (2 per module) |
| *The USB 3.0 connectors are not available for VMware ESXi. |
Dimensions (W x D x H) and
maximum weight |
483 x 734 x 176 mm / 19.0 x 28.9 x 6.9 in 51 Kg / 112.44 lbs. |
Temperature and humidity conditions
(non-condensing) |
Operating: 10 to 40 °C/ 50 to 104 °F , 20 to 80%
Non-operating: -10 to 55°C/14 to 131°F, 20 to 80% |
| Software for availability |
Rapid Disk Resync (RDR)
(Supported on Windows operating systems only.) |
Operating systems and virtualization
software |
Microsoft® Windows Server® 2008 R2 Enterprise SP1
Microsoft® Windows Server® 2012 R2 Standard
Microsoft® Windows Server® 2012 R2 Datacenter
Red Hat® Enterprise Linux® 7.2(Virtualization (KVM/LXC) is not supported.)
VMware® ESXiTM 6.0 Update 1b |
[영어] NEC R320e Datasheet 파일 (R320e_datasheet.pdf) [2016년 8월]
