삼성 LED 사이니지 박스 - SBB-SNOWJMU/KR

	LED S-Box

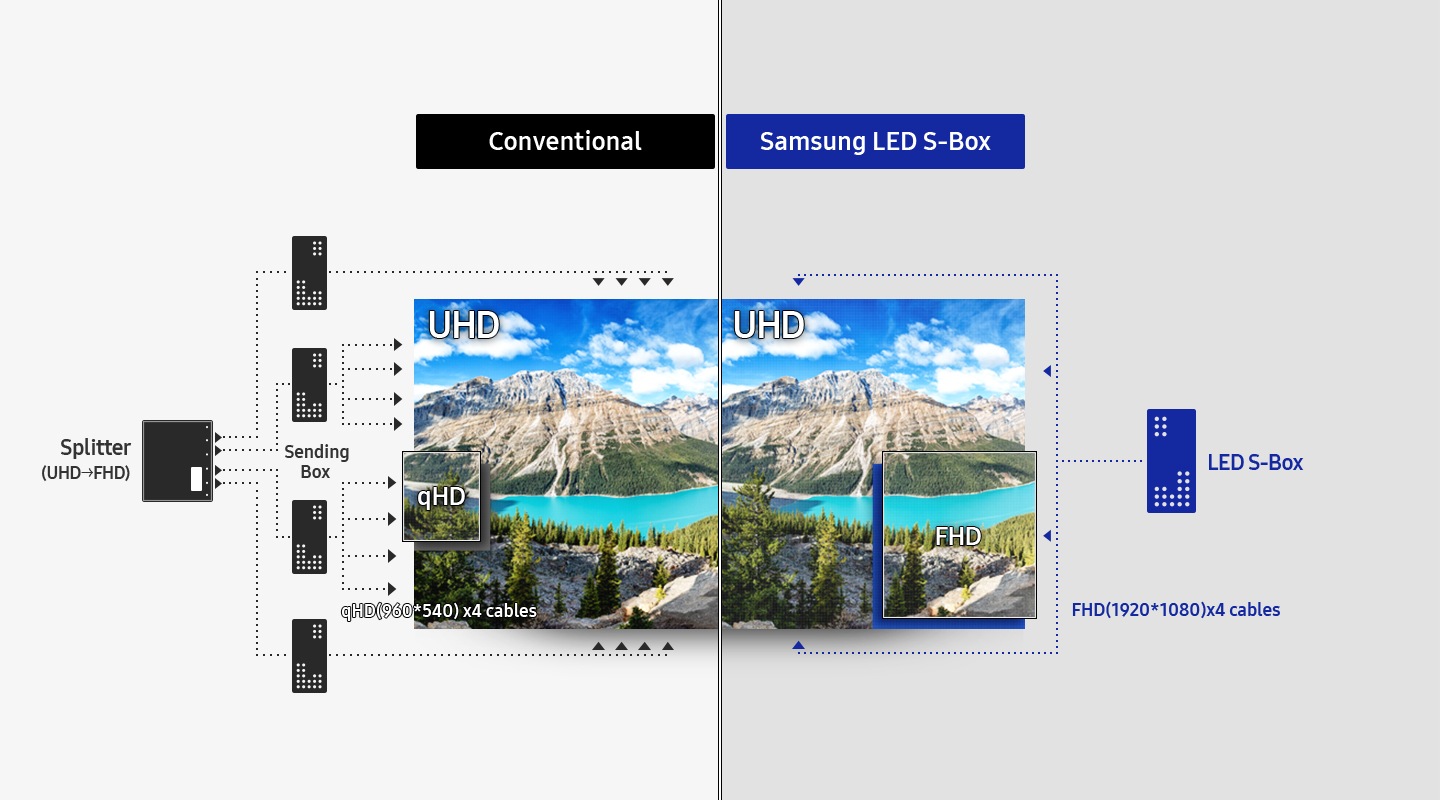

	LED Signage Box (S-Box) condenses the delivery of content to a single, centralized device. The S-Box transmits UHD content across multiple LED displays without requiring external boxes or splitters, helping businesses enjoy a faster and more cost-efficient operations.

	LED HDR technology

	The S-Box leverages LED HDR technology, an advanced picture refinement technology, which produces clearly refined visuals.

	Dynamic Peaking

	Enhance content to optimum peak brightness levels with improved contrast

	Inverse Tone Mapping

	Optimize gradation and brightness for users not to feel discomfort with eyes, maintaining peak brightness level

	Color Mapping

	Ensure an accurate color expression through compatibility with various color gamut settings

	HDR 10+ support

	The S-Box supports HDR 10+ which dynamically tweaks displays’ brightness performance and optimizes image quality scene-by-scene to match the content.

	Eco-Image Enhancer

	The S-Box enhances the detail of images by increasing contrast ratio even in low-light images. In this way, the S-Box realizes better picture quality with a lower amount of power, easing the burden of LED Signage users.

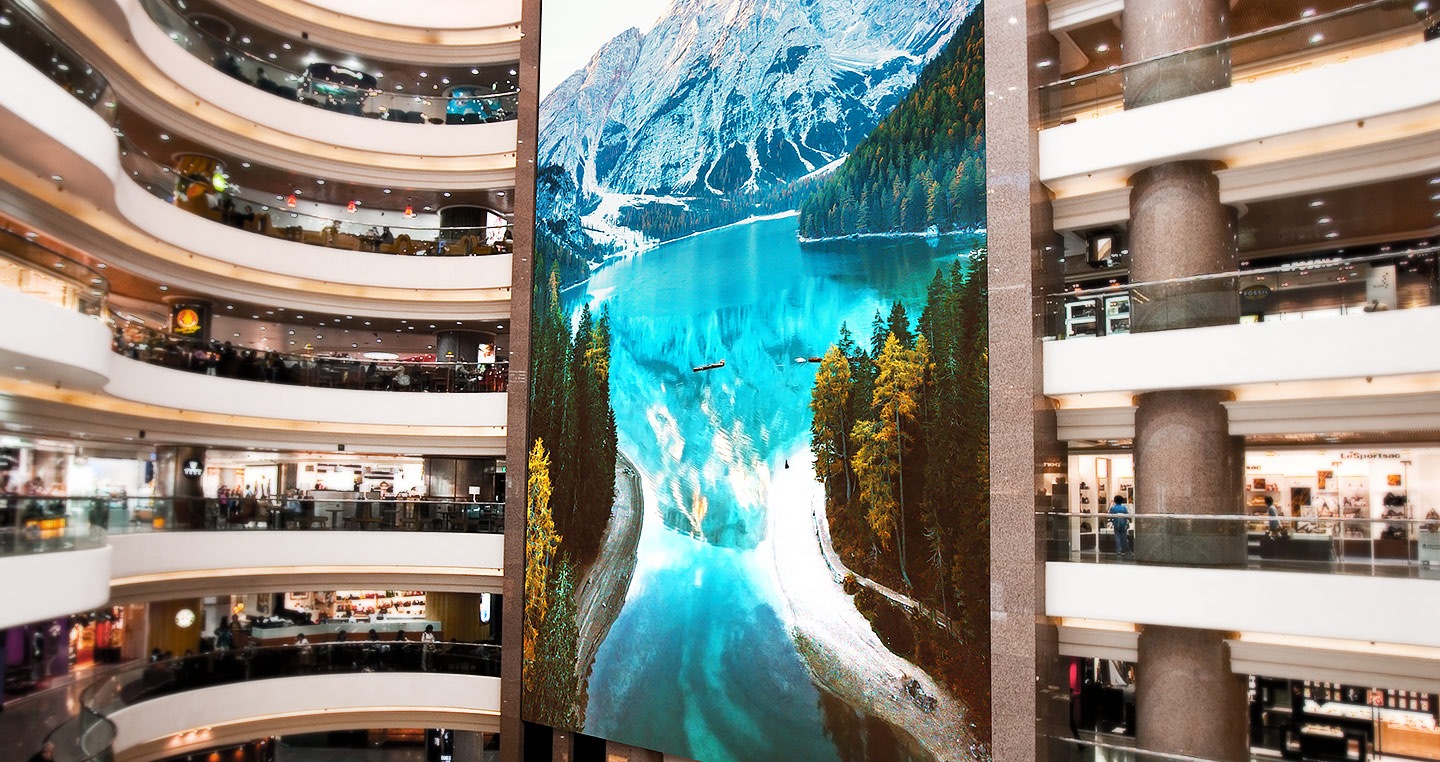

	Multi-link HDR

	Supporting content up to 8K with HDR quality and flexibility for any screen, Samsung SMART LED Signage with Multi-link HDR technology delivers a more immersive display in higher resolution than ever before.

	Any content into HDR

	Turn any content into HDR level quality without needing any special meta-data

	Flexible configuration

	Can be applied to various layouts and screen sizes up to four times 4K resolution

	Image enhancement

	Provide HDR quality up to 8K resolution through multiple S-boxes

	Auto brightness

	The S-Box automatically adjusts brightness levels by detecting the quantity of external light via dimming sensor. This in turn enables LED signage to display content with optimal brightness, while reducing display operating expenses and power consumption.

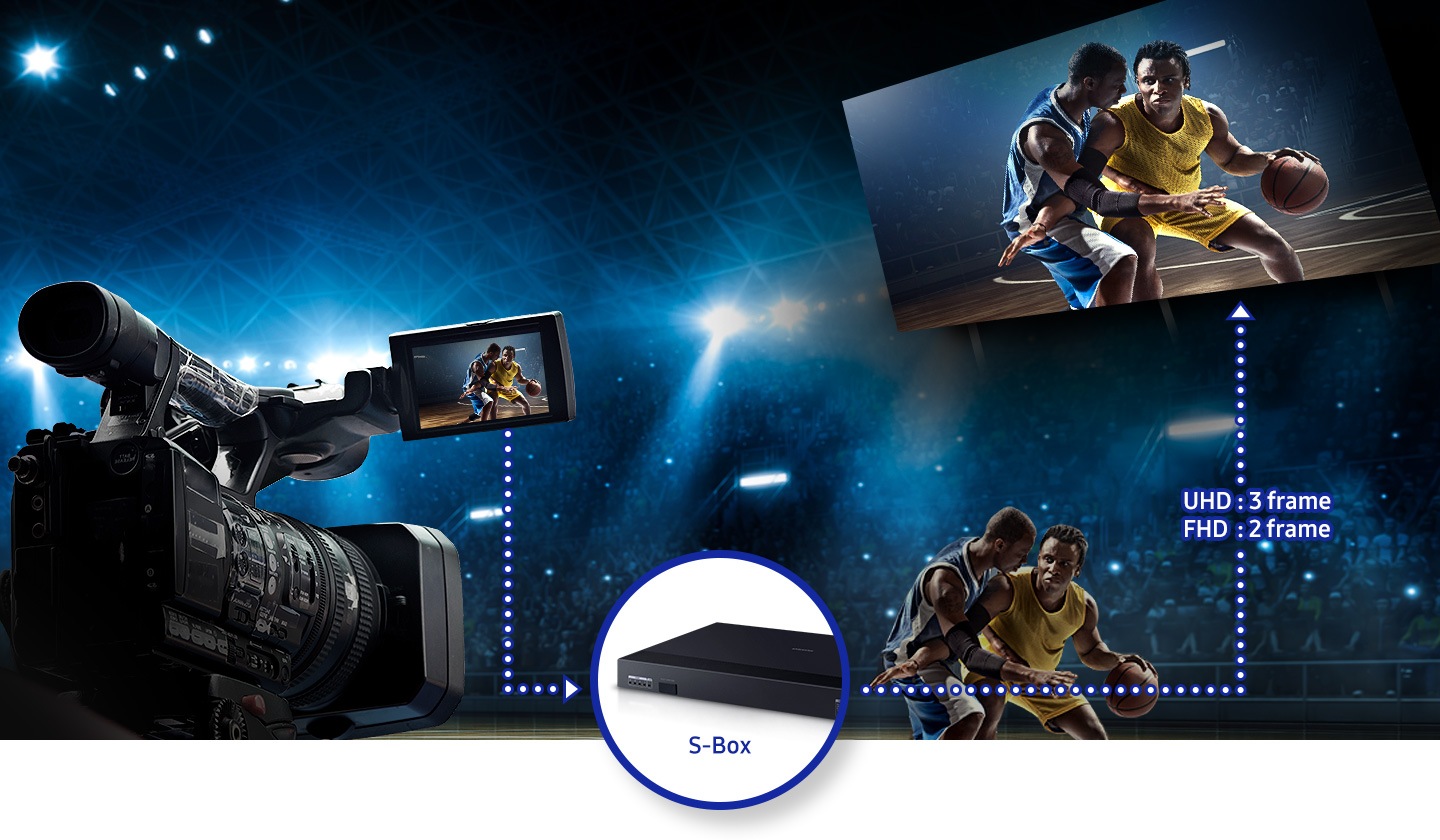

	Live mode

	The S-Box provides a Live mode option and it is suitable where livestream events are required, such as indoor sports. When in Live mode, the S-Box enables the LED displays to deliver content in real time, minimizing a signal delay.

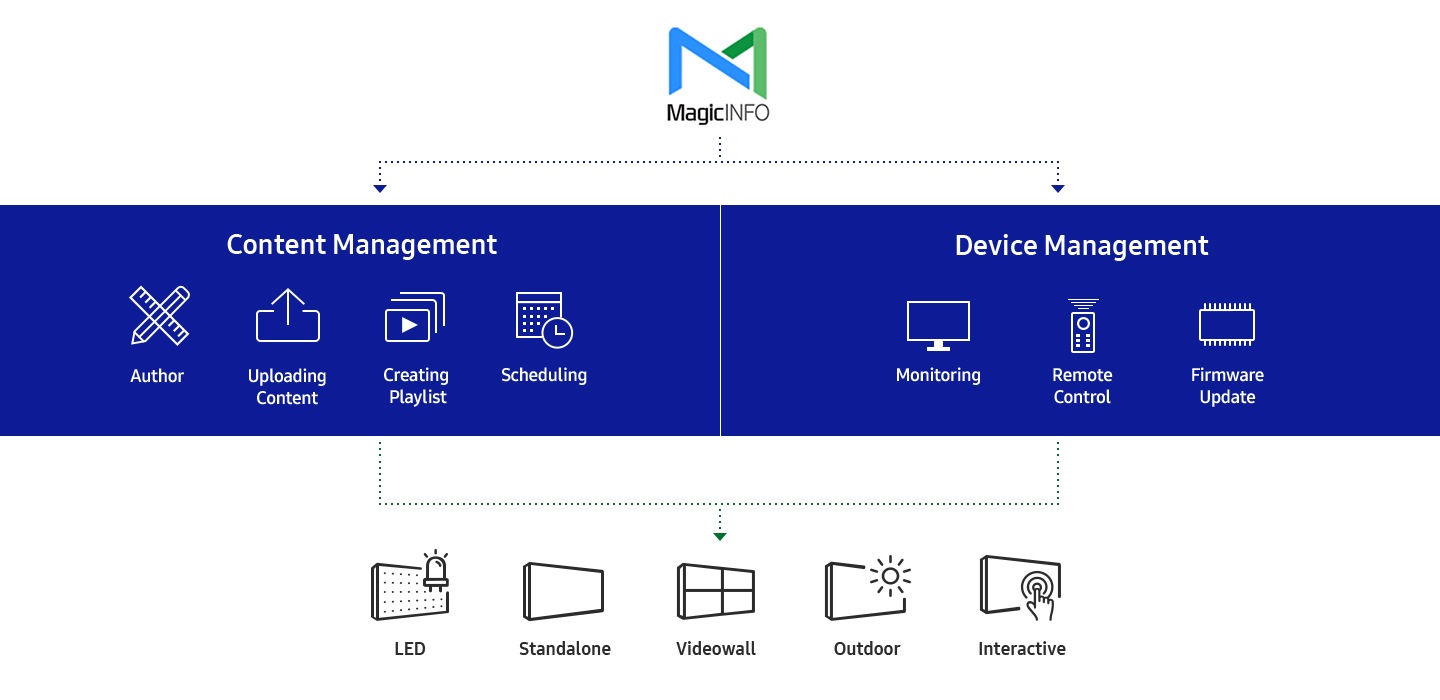

	MagicINFO solution

	Compatibility with the MagicINFO solution enables the S-Box users to create, schedule and deploy content across an entire display network. Users likewise can monitor and adjust display settings and troubleshoot potential performance issues from any locations via remote access.

	삼성 LED 사이니지 박스 SBB-SNOWJMU/KR : 전체 제품 사양

	※ 삼성 LED 사이니지 박스 SBB-SNOWJMU/KR - LED S BOX - LED HDR technology - HDR 10+ support

LED Signage Box (SBB-SNOWJMU/KR)		SBB-SNOWJMU/KR (SNOW-JMU)
LED Signage Box (SBB-SNOWJMU/KR)		크기(가로x높이x깊이) : 440 x 46 x 272.8 mm
Feature	Ethernet	Yes
	MagicInfo Support	Yes
	OSD Language	21 (English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Swedish, Greek, Cheskey, Slovak, Hungarian, Finnish, Turkish, South Arabic Language, Hebrew, Chinese (Traditional/Simplified), Japanese, Korean)
Connectivity	HDMI In	2
	DP In	1
	IR In	Yes
	HDBaseT Out	4 x 1 Interface Gender
Power	Power Consumption (Max)	51W
Mechanical Specification	Set Dimension without Stand	440 x 46 x 272.8 mm
Mechanical Specification	Set Weight without Stand	2.8 kg
Certification and Compliance	Safety	60950-1
Certification and Compliance	EMC	ClassA
I/G Card	Input Signal	Yes
I/G Card	Output Signal	Yes
